DeWalt DCS380 Motor Brush Replacement

Geschrieben von: Jonathan Hicks
  • Kommentare: 1
DeWalt DCS380 Motor Brush Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

1 Stunde

Einleitung

This guide details replacement of the upper motor armature containing the brushes and main power connectors.

  1. RRLo1dhg2PMMGtIS

    • Remove the battery before disassembly.

    • Remove the shoe by pressing the yellow button on the left side of the hand grip.

  2. CrgwddNJNa4HqtHH
    CrgwddNJNa4HqtHH
    1RCobgBs4GMSyq3M

    • Remove the two M8x18mm T20 bolts from the front plate.

  3. FnRa4Fm6CqHC1Nxl

    • Pull the front of the grip while holding the saw body in place.

  4. 4htsxBSBWOaig2aA
    4htsxBSBWOaig2aA
    xbpQ6ftBpHdjmXHM

    • Remove the battery before dissasembly.

    • Remove the M3x16mm T10 screw from the back of the grip. Keep it separate from the rest of the grip screws

    • Remove the six M3.63x19 T15 screws from the grip.

  5. ZVYxmAFoRAXtmR6V
    ZVYxmAFoRAXtmR6V
    m2lBM5JJfErKwGqF
    K1RD34Kl3MmmX3ub

    • Remove the top half of the grip.

    • Turn the saw over and locate the power connectors to the motor.

    • Use needle nose pliers to remove the spade connectors. Take care not to grab the wires on removal, only the end of the spade terminal.

    • Note the polarity for the power connectors and be sure they are not reversed on reassembly.

  6. uN6ZjINTFUhGSou4
    uN6ZjINTFUhGSou4
    TVYP1eGhGy1VTYPL

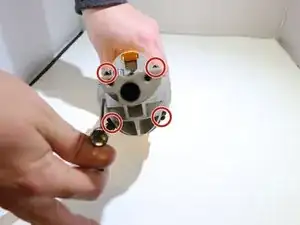

    • Remove four M8x32mm T20 bolts from the base of the gearbox.

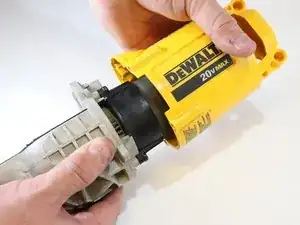

    • Pull the gearbox and motor out of the center housing.

    Hi,

    I am trying to reassemble the magnetic motor case back onto the gearbox; however, it isn't going down far enough and there is a 1/2” gap between the case and where it needs to mount into the aluminum. Any tips?

    John Chestnut -

  7. Qx3mV1fpJUwBYwsf
    Qx3mV1fpJUwBYwsf
    TQksCe4UnIWJGw5g

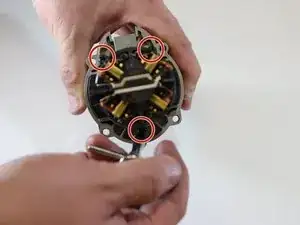

    • Remove three M8x18mm T20 bolts from the back of the gearbox.

    • Pull the motor armature out of the casing.

    • Note which side the power terminals are on. They will need to face the same way during reassembly.

  8. NlQaBfxynJhuoVPg
    NlQaBfxynJhuoVPg
    pmwR5yipGuymOAhU

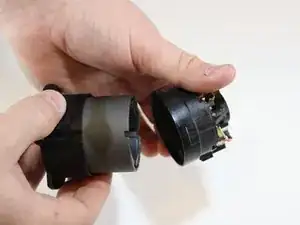

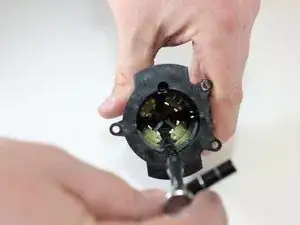

    • Remove two M3.63x60mm T10 bolts from the inner edge of the motor case.

    • Pull the brush housing off the top, leaving the bottom half in place.

  9. Q3K6sOZxV3NCs5QG
    Q3K6sOZxV3NCs5QG
    On2Ut2jS2KKKZOkS
    4ePADEa1EbSWlXfe

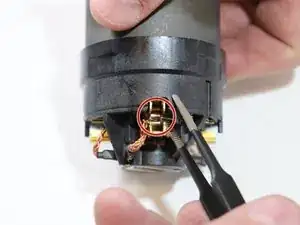

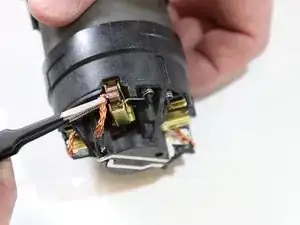

    • This step is for reassembly of the motor.

    • Use tweezers to unload the springs from the new set of brushes.

    • Pull the brush heads back as far as the casing will allow.

    • Reload the springs after the armature has be re-seated.

    • Do not force the armature into the case. With all the brushes pulled back, it should slide in smoothly. Forcing the armature past the brushes can damage them or render them inoperable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
