Einleitung

The DW660 uses a tool-free bit change mechanism, which involves two grips: one locks the motor shaft in place, while the other allows the user to rotate the collet nut independently of the motor shaft.

  1. qJOAHugQjlGoOLjn
    • Remove the depth guide from the top of the tool.

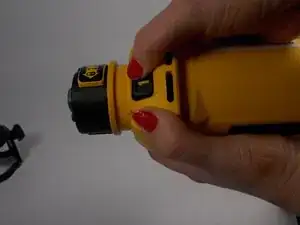

  2. CIVLRXSZW5cOJdD4
    • Press and hold down lock button #1.

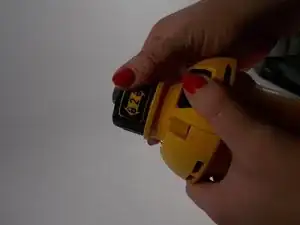

  3. 6cApRnW4d3mEA2lg
    6cApRnW4d3mEA2lg

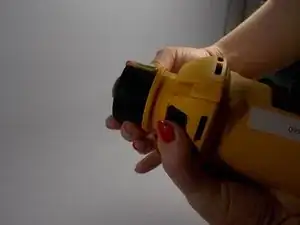

    yOKlUXF6CvYUburM
    • Press lock button #2 while still holding lock button #1.

    • Rotate lock button #2 counterclockwise until you see the collet nut become loose.

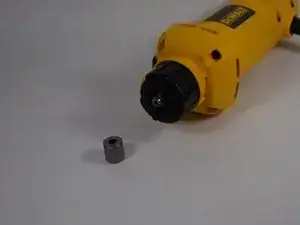

  4. qgNWAT13jpEhDUuy
    qgNWAT13jpEhDUuy

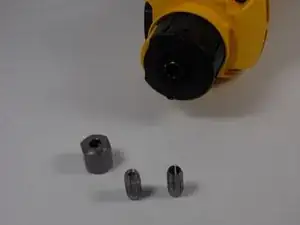

    csWrRmy2BHLQbE2F
    • Remove the large collet nut.

    • Remove the collet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
