DeWalt DW660 Motor Brushes Replacement

Geschrieben von: Joseph Pacitto
  • Kommentare: 0
DeWalt DW660 Motor Brushes Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The motor inside the DW660 uses two carbon brushes which transfer electricity to the rotor by sliding over the copper commutator. The brushes wear out over time with regular use, so they will eventually need to be replaced.

  1. YXJksOKab3WIBwgK
    YXJksOKab3WIBwgK
    QbigxTDd11SK2YHs

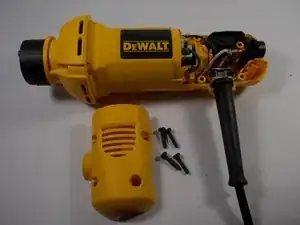

    • Remove the four 19mm T20 Torx screws at the rear of the device.

  2. rgcjqChGTFItDSJP
    rgcjqChGTFItDSJP
    bZKHiAcxXMs3CABL
    EXr6BF5KhhYI223v

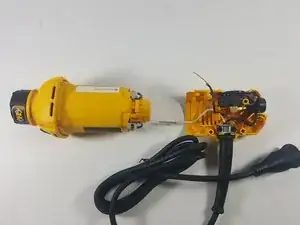

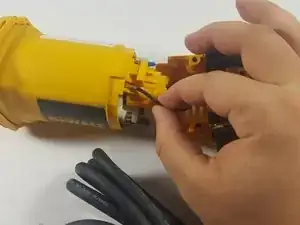

    • Remove the other part of the back casing.

    • Unplug the black and white power wires from the motor.

  3. IWEXEUnn6By5KQbf
    IWEXEUnn6By5KQbf
    OCAHbKHmAyXIYCk2

    • Pinch the blue brush wire between two fingers.

    • Pull on the wire, removing them from the motor.

  4. tYmaY1QDQLTIkteM
    tYmaY1QDQLTIkteM
    YJsS1LFQEEQTfCXd

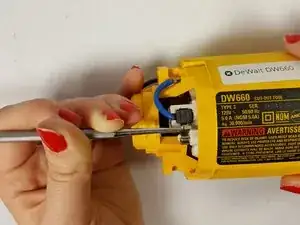

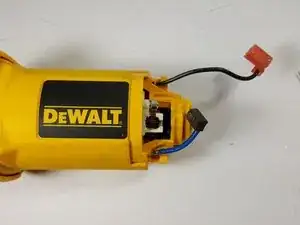

    • Using the metal spudger, lift up the coil spring that holds the carbon brushes in place.

    • While the spring is lifted up, remove the carbon brush by simply sliding it out of the slot.

  5. wcTV4b6hhNVC35fG
    wcTV4b6hhNVC35fG
    YigE16BG3mVFyN24

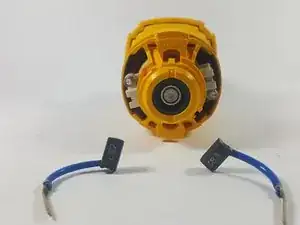

    • Repeat steps 3 and 4 to remove the other carbon brush.

    • When installing the new carbon brushes, make sure each brushes' lead wire is plugged into opposite ends of the motor.

    • Refer to the photos for visual assistance.

Abschluss

To reassemble your device, follow these instructions in reverse order.
