DeWalt DW660 Power Switch Replacement

Geschrieben von: Joseph Pacitto
  • Kommentare: 0
DeWalt DW660 Power Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

The DeWalt DW660 has an amazing dynamic power switch that makes operating the device extremely easy. The bump off feature of the switch allows for an easy shut off with minimal effort.

  1. UQNRo4TAa5t5tKcl

    • Remove the four 19mm T20 Torx screws at the rear of the device.

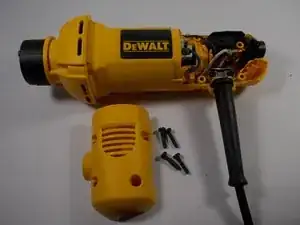

  2. NYnfBowyTTsmLKaX

    • Remove the cover to expose the inside of the tool.

  3. lIKvRkNTbYmJ4OJw
    lIKvRkNTbYmJ4OJw

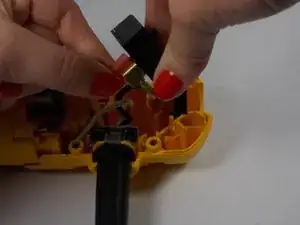

    fDpBeIamfQYibwpY

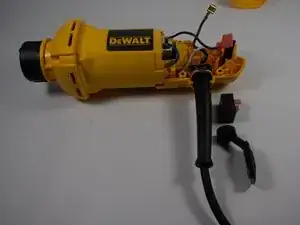

    YTIaLSREWeA11Hly

    • Pick up the switch from the device with the wires still attached.

    • Remove the actuator from the switch.

    • Pull the two wires from the switch.

    • Make sure to remember where each pin went on the switch after replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
