DeWalt DW920 Lock Switch Replacement

Geschrieben von: Stephen Rada
  • Kommentare: 1
DeWalt DW920 Lock Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. CUytIWFnRph3vlUk

    • Using an H-5.0 bit driver remove the four T-10 Torx screws.

  2. fIlFKGRnLa1nKGan

    • Use 2 H-5.0 bit drivers to take out the main bolt and head.

    • There will be blue locktite on the tread.

  3. sH4XRZpuSDmcWJyZ

    • Carefully remove the two halves of the handle.

  4. 1nHTUJQEHIHMHsTU

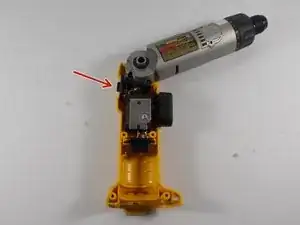

    • Locate the switch on the top of the drill right before the bending joint.

  5. vQEBSLuXpCSqBWiA
    vQEBSLuXpCSqBWiA
    Djicja4RsBDWUWQe

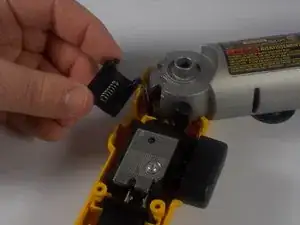

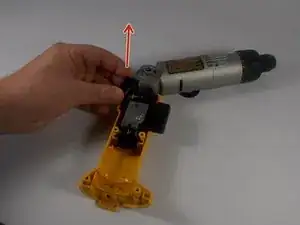

    • Firmly grasp the switch with two fingers and lift it straight up. The spring should remain attached to the switch during this process.

    • It should lift right out. If it is caught on anything do not force it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
