DeWalt DW920 Motor Replacement

Geschrieben von: Stephen Rada
  • Kommentare: 0
DeWalt DW920 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 25 Minuten

Einleitung

  1. CUytIWFnRph3vlUk

    • Using an H-5.0 bit driver remove the four T-10 Torx screws.

  2. fIlFKGRnLa1nKGan

    • Use 2 H-5.0 bit drivers to take out the main bolt and head.

    • There will be blue locktite on the tread.

  3. sH4XRZpuSDmcWJyZ

    • Carefully remove the two halves of the handle.

  4. v2Bgq4pfCgmr1tva

    • Gently lift the motor and trigger mechanism out from the frame of the drill.

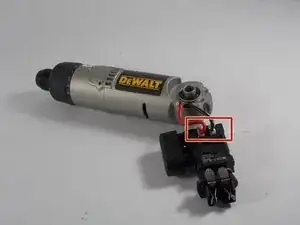

  5. vnJuAMvBq6TOcdPW

    • Locate where the motor assembly is attached to the trigger mechanism and carefully detach the wires at their solder points.

    • Mark where the two cables was connected using a masking tape or similar.

  6. UTRd4KNuhCUsvNY2

    • Solder the new motor assembly wires to the trigger mechanism in the same fashion that the old motor was.

    • Remember to check the markers from the step before and solder the cables on the right place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
