DeWalt DW936 Boot Replacement

Geschrieben von: Scott Weinhardt
  • Kommentare: 0
DeWalt DW936 Boot Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to remove the boot of the saw in order to replace it.

  1. KgHFmBENhdXC5Vbg

    • Use a T-20 hexhead screw to unscrew 4 hexagonal screws surrounding the base of the black air filter. The screws are on the yellow portion.

  2. sttmsgGLaWhoGnM6

    • Use a T-15 hexhead screw to unscrew 5 hexagonal screws. These screws are located on the opposite side of the saw from previous step.

  3. gtxqwp4dYyhgQOlG

    • Remove Allen Key.

  4. DsWeCR2gSSP3EjZE

    • Unscrew the black plastic knob underneath the trigger.

  5. uENmI2JHGHIDosSa

    • Grab hold of the black air filter portion and pull off.

  6. kmQafQBtVG6aaTUK

    • This is what the inside of the saw looks like.

  7. FHLAt4QJlhPse1v1

    • Use a T-15 hex head screw to unscrew the four screws located around the outside of the motor.

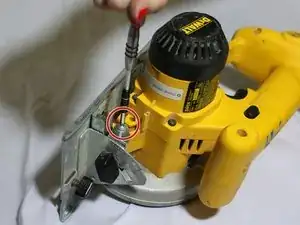

  8. GhlHWNnLCDFFpQ2S

    • Using an H 4.0 hex head screw, unscrew the bolt located right above the boot that is next to the motor of the saw.

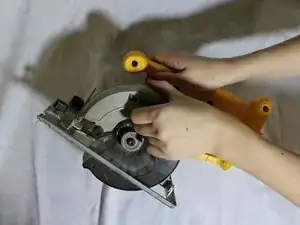

  9. qY3OHpIlLL5KnEFh

    • Pull the blade away from the body of the saw causing the blade and boot to detach.

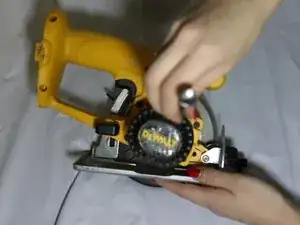

  10. TQCtbLlm1FfA4Zew

    • Pull the boot downwards away from the blade to detach it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
