DeWalt DW936 Trigger Replacement

Geschrieben von: Scott Weinhardt
  • Kommentare: 2
DeWalt DW936 Trigger Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to take out the trigger on the saw.

  1. KgHFmBENhdXC5Vbg

    • Use a T-20 hexhead screw to unscrew 4 hexagonal screws surrounding the base of the black air filter. The screws are on the yellow portion.

  2. sttmsgGLaWhoGnM6

    • Use a T-15 hexhead screw to unscrew 5 hexagonal screws. These screws are located on the opposite side of the saw from previous step.

  3. gtxqwp4dYyhgQOlG

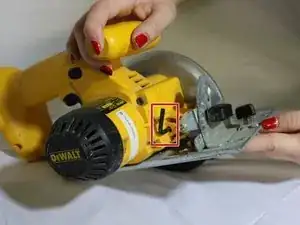

    • Remove Allen Key.

  4. DsWeCR2gSSP3EjZE

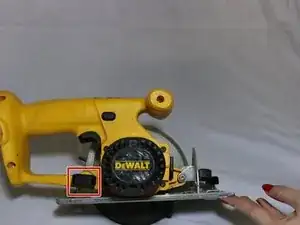

    • Unscrew the black plastic knob underneath the trigger.

  5. uENmI2JHGHIDosSa

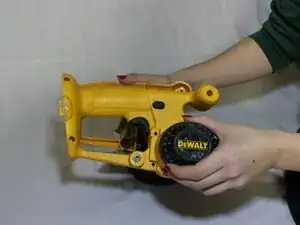

    • Grab hold of the black air filter portion and pull off.

  6. kmQafQBtVG6aaTUK

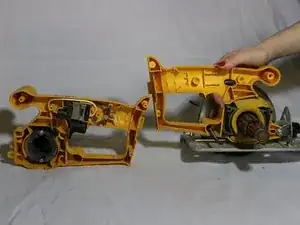

    • This is what the inside of the saw looks like.

  7. ZItN4lg54t4B4UeB

    • The trigger has black and white wires coming off of it. Grip the trigger with both hands, one on the plastic trigger part and the other on the plastic by the silver metal piece.

    • Pull up.

  8. bSso1RntAyVNHu6A

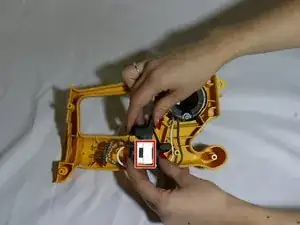

    • The trigger should be able to sit freely.

  9. HCXSC6FwNnULTbqn
    HCXSC6FwNnULTbqn
    hojhLSUYCOKSaMIS

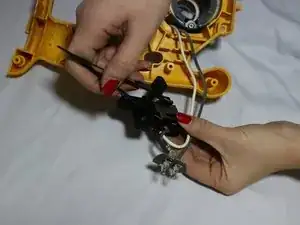

    • Lift off the silver metal piece using tweezers.

    • Lift off each hook. (4 corners)

  10. OwRg5ZSoOPxcX2nZ

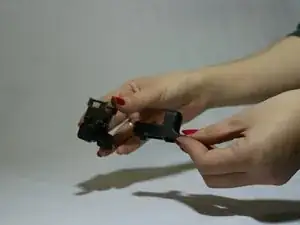

    • Pull plastic trigger out of the black plastic casing.

    Didn't go far enough, the problem with the trigger is that the internal contacts burn away with use and need to be cleaned / repaired. the trigger is no longer available so you have to fix it yourself. Difficult to repair the contacts, suggest you just clean them and put the switch back together. Check if it works with a meter before reassembling the saw. If not throw the whole thing away and mend it with a new one!

    Roger Currier -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Scott Weinhardt

Mitglied seit: 26/01/17

603 Reputation

Ein Kommentar

Then repair trigger by stripping,cleaning,soldering and whatever else before replacing to unit as you can no longer buy the part as it is obsolete!

donald.mcguinnes -
