DeWalt DW938 Brush Head Replacement

Geschrieben von: Christopher Chin
  • Kommentare: 1
DeWalt DW938 Brush Head Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show how to remove the brush leads on the DeWalt DW938.

  1. wUnvBFRO2CyY2EnW
    wUnvBFRO2CyY2EnW
    ZMA6pBXPQwlAHHDP
    DkhL6cE5O3wYhT2M

    • Use a torque bit screw driver to remove the T10 18.3 mm screw on the handle.

    • Use a torque bit screw driver to remove 6 T10 21.5 mm screws on the handle.

    • Insure power source is removed from tool.

    • Insure blade is removed from tool.

    The 6 larger screws on mine are T15.

    Justin Lundberg -

  2. 6G4ggDCYVLOVafmb

    • Carefully cut the safety sticker with a blade along the seam.

  3. JW63AMDkjBMf3nTH

    • Remove the Clam Shell from the handle unit.

  4. mqDsJaEcWVUNPDrc

    • Lift the mechanical device off the pins of the clam shell.

  5. TjmeiEkTrGfNWmhO
    TjmeiEkTrGfNWmhO
    bIXmMLleBHPwwNPQ

    • Remove the red and black trigger wires from the brush leads with the pliers.

  6. q16gBcxHSETk4nck
    q16gBcxHSETk4nck
    CMqR3DcMd5RkLftM

    • Remove the VSR trigger and the lock button.

  7. VXN2eOyats61iHAY
    VXN2eOyats61iHAY
    kBipMGRUssLXOGwX
    tQ1322iO4NDWKPRQ

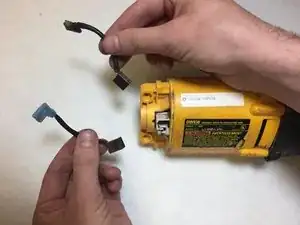

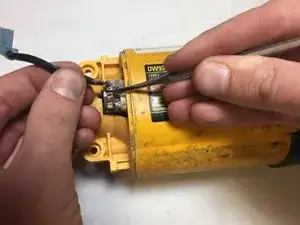

    • Push in locking clips to remove the brush head.

    • Repeat for the other brush.

Abschluss

To reassemble your device, follow these instructions in reverse order.
