DeWalt DW938 Clam Shell Replacement

Geschrieben von: Christopher Chin
  • Kommentare: 2
DeWalt DW938 Clam Shell Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

4 Minuten

Einleitung

This guide will demonstrate how to separate the Clam Shell from the DeWalt DW938.

  1. wUnvBFRO2CyY2EnW
    wUnvBFRO2CyY2EnW
    ZMA6pBXPQwlAHHDP
    DkhL6cE5O3wYhT2M

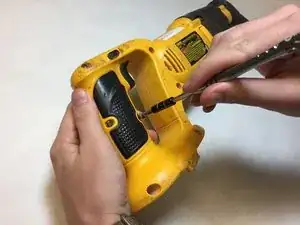

    • Use a torque bit screw driver to remove the T10 18.3 mm screw on the handle.

    • Use a torque bit screw driver to remove 6 T10 21.5 mm screws on the handle.

    • Insure power source is removed from tool.

    • Insure blade is removed from tool.

    The 6 larger screws on mine are T15.

    Justin Lundberg -

  2. 6G4ggDCYVLOVafmb

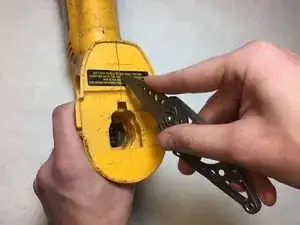

    • Carefully cut the safety sticker with a blade along the seam.

  3. JW63AMDkjBMf3nTH

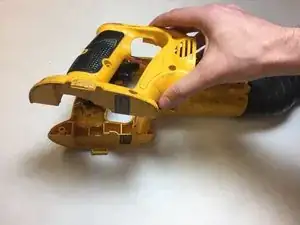

    • Remove the Clam Shell from the handle unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Christopher Chin

Mitglied seit: 09/03/17

316 Reputation

Ein Kommentar

do you know where I can find a clam shell just like this one?

file:///C:/Users/Tony/Desktop/clam%20shell1.jpg

Tony Lacour -
