DeWalt DW997 Bohrfutter tauschen

Geschrieben von: Katie Osborne
  • Kommentare: 17
DeWalt DW997 Bohrfutter tauschen

Schwierigkeitsgrad

Mittel

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. hUdQevgG6uThvgHw
    hUdQevgG6uThvgHw
    XlTHgn3E4xVB2qaC

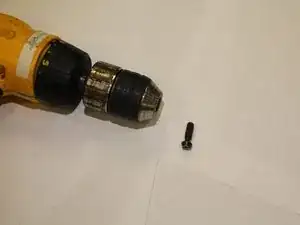

    nSRwdVSFgQEBoiXs

    • Öffne das Bohrfutter komplett. Löse die innere Bohrfutterschraube mit einem T20 Torx Schraubendreher.

    • Die Bohrfutterschraube hat ein Linksgewinde, das heißt, du musst sie im Uhrzeigersinn lösen.

    Although you specify "reverse threaded", you confuse the issue by saying "counterclockwise." You mean counterclockwise from the drill's perspective, but that's counter-intuitive. Many folks will assume clockwise or counter from the screwdriver's perspective. It would help to make that clear. Same applies to step 3 where the photo makes it clear you mean clockwise from the drill's perspective, but since your're unscrewing the allen screw, I would tend to interpret it from the allen wrench's perspective, which would be counterclockwise. Thanks for providing this instruction set.

    Charles Key -

    You need to Simply reverse counterclockwise and clockwise in your instructions

    Mark -

    You need to reverse counterclockwise and clockwise in your instructions

    Mark -

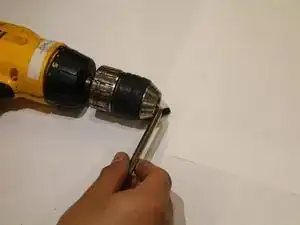

  2. kjrXS24hTAhQi23x

    • Stecke den Inbusschlüssel in das Bohrfutter und ziehe die Backen mit dem Schlüssel fest.

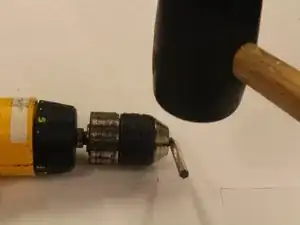

  3. 2eqh6i2bUrISCXbw

    • Schlage mit einem Hammer auf den Sechskantschlüssel um das Bohrfutter zulösen und zu entfernen.

    • Triff den Sechskantschlüssel von oben. Die konventionellen Bohrfutter lösen sich gegen den Uhrzeigersinn.

    Clockwise or counter clockwise? Image shows counter clockwise but directions say clockwise…

    Tyr -

    Counter clockwise per youtube videos: https://www.youtube.com/watch?time_conti...

    Scott -

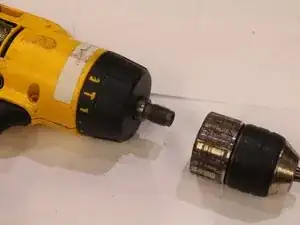

  4. EX5tGueucHqT3pgV

    • Löse das Bohrfutter vom Schrauber.

    • Überprüfe das Bohrfutter und die Befestigungen auf Beschädigungen oder Verschmutzungen.

    • Wenn das Bohrfutter ausgetauscht werden muss, montiere das neue Bohrfutter und überprüfe auf Funktionalität.

    • Wenn Du Verschmutzungen entfernen musst, stelle sicher, dass die Befestigung am Schrauber sauber ist, bevor Du das neue Bohrfutter montierst und auf Funktionalität überprüfst.

    Thankx for the Easy to understand& follow instructions-perfect! But I can't get the stupid chuck to release the friggin bit so I can start on the first step!! Grrrrr…very very frustrated!

    Angel Williams -

    Inside Moving parts one of them is moving the same way than the other two

    javier castillo -

    J’ai eu du mal car il était bien bloqué mais les photos et le texte m’ont bien aidé

    cdelgrange -

    Your picture shows hitting the internal allen wrench counter clockwise but you say to turn it clockwise, which is it???

    Ed Edmondson -

    Counter clockwise per youtube videos: https://www.youtube.com/watch?time_conti...

    Scott -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten dieser Anleitung in umgekehrter Reihenfolge.

Tinte & Feder

Katie Osborne

Mitglied seit: 12/09/16

349 Reputation

7 Kommentare

If Allen wrench loosens the truck clockwise as written wouldn’t you be hitting it the other way ? Not sure if I’m not understanding correctly or reading something wrong. Thank you

Jan M -

I agree with Jan. This does not make sense to me and i have been twisting this stupid thing for 3 days.

Bridgette Elliott -

Your comment ‘The chuck screw is reverse threaded, which means you will need to unscrew it counterclockwise. ‘ is nonsense.

A normal screw is counterclockwise to unscrew.

What you meant to say was

‘The chuck screw is reverse threaded, which means you will need to unscrew it clockwise. ‘

You might also like to add the the screw is often coated with loctite and very difficult to remove. A high quality tool and plenty of force may be required to remove this screw.

dasdasdas -

I think the clockwise thing wasn’t that hard to understand, but personally, my chuck screw was actually quite easy to remove so it wasn’t a problem for me

J .Healy -

https://studio.youtube.com/video/Vx37F9q...

Here’s a short video on how to fix a chuck on drill. The screw that holds the chuck to the drill broke and needed to be extracted, and replaced.

alejandropenagarcia -

I think my problem is exactly what your video shows - screw holding the chuck broke - but the link does not work. Can you give a good link or better description of the video? (There are many on removal of the chuck, and I can't find this one). Many thanks!

David

David G. Butterworth -

To commenters, it’s 2 separate procedures.

First your removing the SET SCREW (step 1 & be sure to look at all 3 pictures). The internal set screw is reverse threaded & removes by turning CLOCKWISE.

Then, your removing the CHUCK (steps 2-4). The chuck removes in a COUNTER CLOCKWISE direction. Also, when removing the chuck you are supposed to slide the gearbox into the lowest torque position (#1, not #2 or #3).

A video is at: youtube.com/watch?v=bp_mXt3Zo5w

K M -
