DeWalt DW997 Speed Switch Replacement

Geschrieben von: Juan Endara
  • Kommentare: 1
DeWalt DW997 Speed Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to disassemble your drill in order to replace the speed switch.

  1. XINnQwWXZr2U1HYA
    XINnQwWXZr2U1HYA
    MGAXQdIBafS2reU3

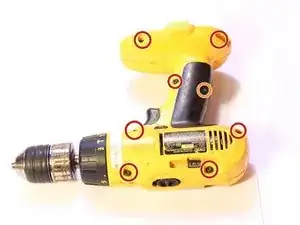

    • Remove seven 21 mm Torx T15 screws.

    • Remove one 18 mm Torx T10 screw.

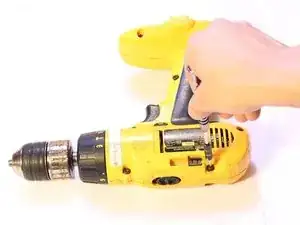

    • After removing all screws, lift up the top yellow cover.

    • The yellow cover should easily lift up, if not, check for unscrewed screws.

    • Do not pry the two yellow covers apart, they can crack.

    Tüm olarak almak istiyorum

    Abuzer Yesilkaya -

  2. RiP24PrIYStJXK5d

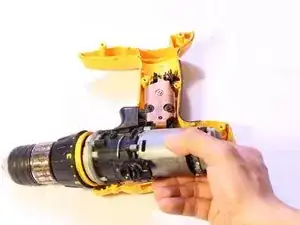

    • Lift the components out of the casing. These include: motor, gear assembly, trigger assembly and chuck.

  3. 62NERl5eMAwk6NgA

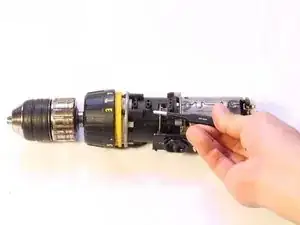

    • Using the tweezers, grab the metal leg on either side of the switch and lift it outwards from the case.

  4. SIrnXehJhQXD6YDV

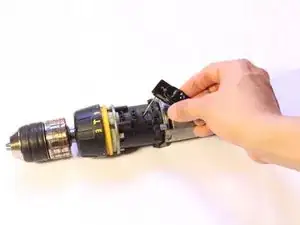

    • Remove the other leg manually, it should easily come out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
