DeWalt DW997 Trigger Replacement

Geschrieben von: Vanessa Duran
  • Kommentare: 1
DeWalt DW997 Trigger Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will show you how to replace the trigger pack. This is necessary if the battery is charged but the drill will not start or if the battery is fine but the drill will not spin.

  1. WEgVJHGAFV5PaEYK
    WEgVJHGAFV5PaEYK
    1J6wXQrCjRRhATda

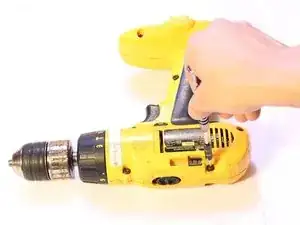

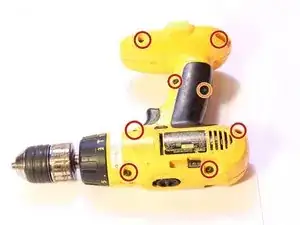

    • First remove the seven 21mm screws using a Torx T15 screw bit.

    • Then use a Torx T10 screw bit to remove the remaining 18mm screw.

    • After removing all of the screws, lift the cover off.

    • Do not attempt to pry the covers apart; doing so can cause the covers to crack.

  2. txmwRN6o2oIgTLlE

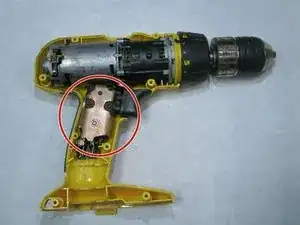

    • Carefully remove the trigger pack by lifting the pack straight up.

  3. 6u1gsxZHalf1WxsC

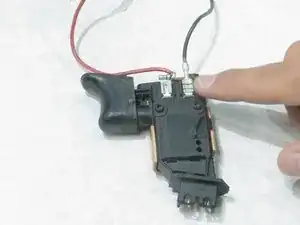

    • The final step is to pull the wires off of the trigger by pulling the wire heads.

    • Be careful while taking off the wires as they can tear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
