Einleitung
The wound wires of a field coil can fail, causing a drill to function poorly or not at all. Use this guide to replace a broken field in the DeWalt DWD112.
Werkzeuge
-
-
Remove the top cover to reveal the inside of the drill.
-
Set the top cover of the drill aside.
-
-
-
Using one hand grab the trigger box and with the other grab the end of the wire connecting to the trigger box and disconnect the wire.
-
-
-
Lift the trigger box up to reveal the bottom side.
-
Disconnect the first connected wire from the bottom of the trigger box.
-
-
-
Disconnect the last wire from the trigger box using the same method from the previous step.
-
-
-
After all four wires are disconnected, the trigger and power cord are separated from the drill.
-
-
-

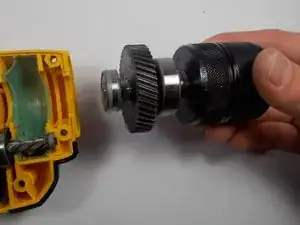

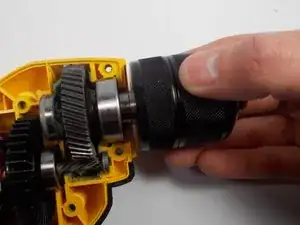

Grab the metal chuck by the rotating spindle as if you are to tighten in a drill bit.
-
Lift the metal chuck out of its resting place and set aside.
-
-
-

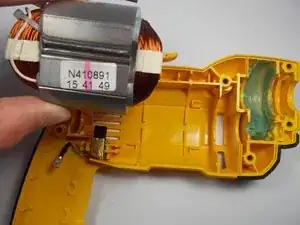

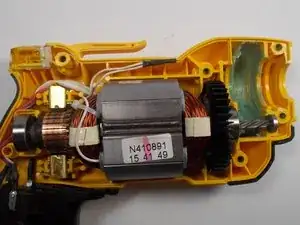

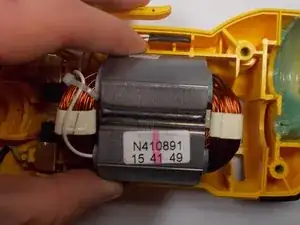

With your left hand, grab hold of the field, which is the large metal block with coils looped around the inside.
-

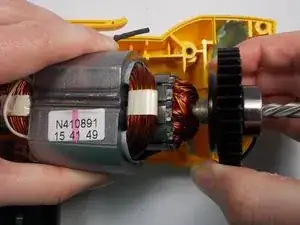

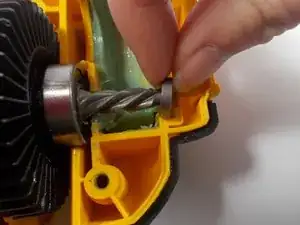

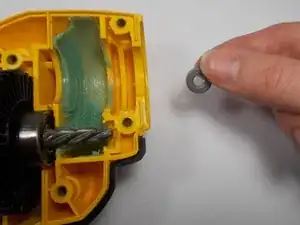

Use your other hand to take the bearing out from the end of the gear connected to the armature.
-
-
-

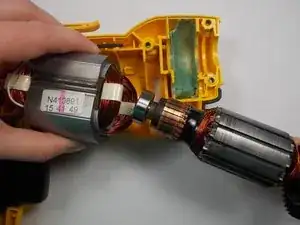

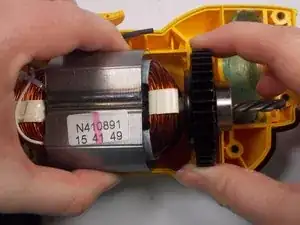

Lift the field up once more with one hand and grab the cooling fan with the other hand and gently slide the armature out of the field.
-
-
-

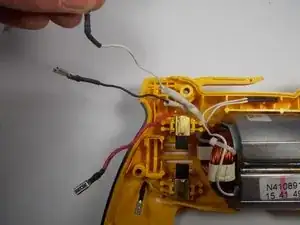

Move the black wire clear from any obstruction.
-

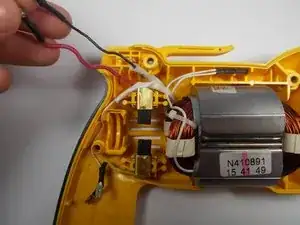

Repeat this step for the white wire and the red wire.
-
To reassemble your device, follow these instructions in reverse order.
