DeWalt DWE4011 Power Cable Replacement

Geschrieben von: kean colosimo
  • Kommentare: 0
DeWalt DWE4011 Power Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

When replacing electrical components on any device careful consideration must be taken to reduce risk of shock. Be sure the cord is not plugged into a power source before proceeding with this replacement guide. If the cord is cut, this should not be an issue. Reasons you might need follow this guide include: damaged power cord, or the grinder wont turn on.

  1. oxAO1ZBi1uJghtgD

    • Turn to the bottom of the device and remove the 5/8" (17mm) T15 Torx screw.

  2. V6llFQWwRvqZDKhd
    V6llFQWwRvqZDKhd
    TgNsBdK5EICOfuNS

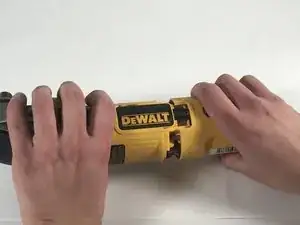

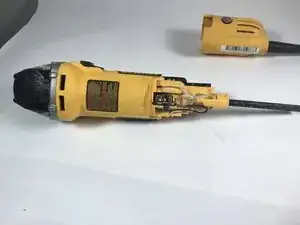

    • Remove bottom casing by separating the end handle away from the main casing.

  3. BIDDUNQpBuGpxjqg
    BIDDUNQpBuGpxjqg
    ZJGUbKsHnf436qL5

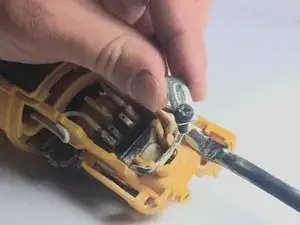

    • Remove the 1/2” (13mm) Phillips #2 screw holding the power cable to the device. This will free up the metal clamp holding the cable in place.

  4. eQvUAXNKcYeiPpjH

    • Flip the grinder over and disconnect the plastic switch mechanism from the cable housing.

  5. x6lnSl2HuroNAKgb
    x6lnSl2HuroNAKgb
    qDCUCEIIGx1ADtIe

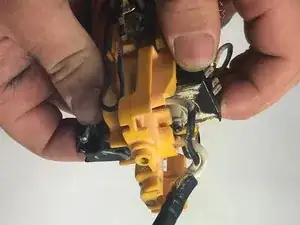

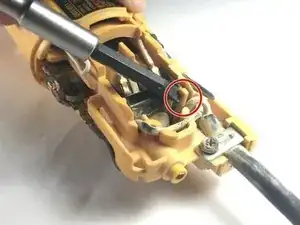

    • Pull back the yellow tab holding the housing in place using a nylon spudger. Carefully pull the housing out of the casing.

  6. Uudb2B1YJWxVLDqr
    Uudb2B1YJWxVLDqr
    QH6pbiTQwbfr4YAT

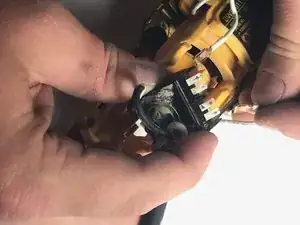

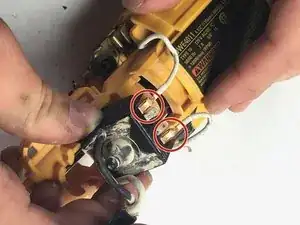

    • Locate the terminals with the two white cables attached and disconnect both.

    • These cables are connected to the outer terminals; connect as such during reassembly.

  7. VXvrGS3gDfspWYcL
    VXvrGS3gDfspWYcL
    WoOKrUDVPqQZbhMh

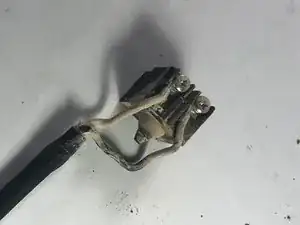

    • Remove the entirety of the cable housing from the device casing.

    • The two wires coming from the power cable should still be connected to electrical housing at this point.

  8. ZMZQGtCXXvD2saUV

    • Loosen the Phillips #2 screws enough to disconnect the two wires from the power cable housing.

    • Removing the screw entirely is fine, but unnecessary since the screws are merely clamping down the wires' ends.

Abschluss

To reassemble your device, follow these instructions in reverse order.
