Definitive Technology W7 Motherboard Replacement

Geschrieben von: Magnus Maillet
  • Kommentare: 0
Definitive Technology W7 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide outlines how to replace the motherboard of the Definitive Technology W7, with a model number of 093207098505.

  1. SRP2VsSRQNBpI6MR
    SRP2VsSRQNBpI6MR
    nKsTyaSJ5lkudDuP
    UYmpGcHRWMyCx2AF

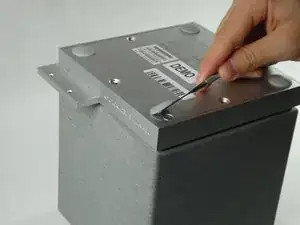

    • Flip the speaker upside down, then use the Phillips #2 screwdriver remove the 4 screws securing the bottom cover.

    • The screw next to the I/O panel will be approximately 20 mm in length. The other screws will be approximately 35 mm in length.

    • Use the metal spudger to remove all rubber feet.

    • Unscrew all four screws from under the rubber feet.

    • These screws will be approximately 35 mm in length.

    • You can now use the prying tool to pry the bottom panel off the speaker.

  2. 4U1klQgmRGdyPCoE

    • Using a Phillips #2 screwdriver, remove the 5 screws from the motherboard.

    • These screws are approximately 8 mm in length.

  3. 4vxVvcHA2cg1WUtG
    4vxVvcHA2cg1WUtG
    2lgVXNjlsBXVUqVZ

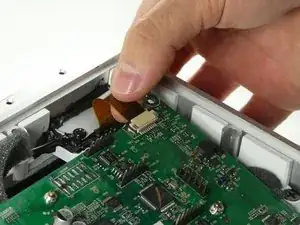

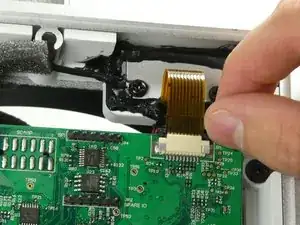

    • Push up the locking tabs on the sides of the ribbon cable connector.

    • Gently pull the ribbon cable out from the connector to remove it.

  4. IyNcbjDwbCnM56ZQ
    IyNcbjDwbCnM56ZQ
    t2qgAUBWdIgnnKoD

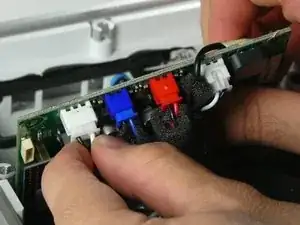

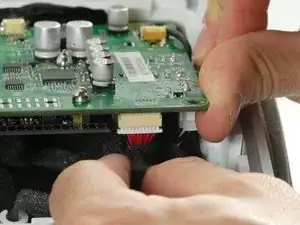

    • Tilt the motherboard outwards from the speaker.

    • Remove all five connectors from the motherboard.

    • Remove the motherboard from the speaker.

  5. MfHmNpoRdoi6R6TH
    MfHmNpoRdoi6R6TH
    GwHIZefdpOAKyOyC

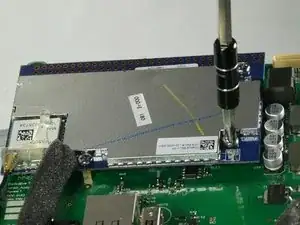

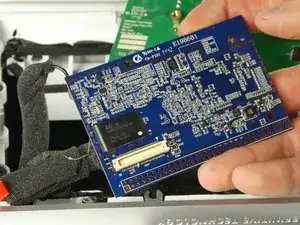

    • Using the Phillips #2 screwdriver, remove the three screws from the network card.

    • These screws are approximately 8mm in length.

    • Remove the network card from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
