Dell Inspiron 15-7569 Battery Replacement

Geschrieben von: Matthew Clements
  • Kommentare: 1
Dell Inspiron 15-7569 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

10 - 30 Minuten

Einleitung

If your computer has to remain on the charger to be used or is not holding a battery charge like it used to, this guide will help you replace your battery.

  1. YprrEJEZUL4d4PhQ
    YprrEJEZUL4d4PhQ
    VF2NVHJERHlUyvyX
    wDOCwqdCWDPq4CGB

    • Remove the (10) P58F black screws on the back cover using the Phillips #0 screwdriver.

    • After removing the screws, remove the back cover using a plastic or metal spudger.

  2. XxdjcgjbHTMYim26
    XxdjcgjbHTMYim26
    pYZpVBlaJDMH64SU
    EpjZYqjyC4wtFnnZ

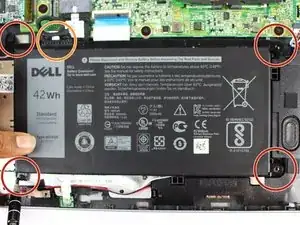

    • Unscrew the (4) four screws surrounding the battery with a Phillips #0 screwdriver.

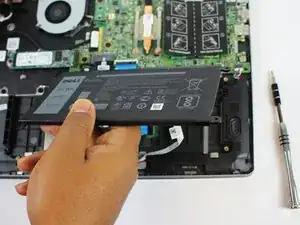

    • Unplug the cord connected to the battery and remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Matthew Clements

Mitglied seit: 03/10/17

546 Reputation

Ein Kommentar

Thanks Matthew,

This was a huge help for me. It took just a few minutes, but I spent some time brushing & blowing out the fan & heatsink. Only difference from the instructions is that there are only 2 screws to remove the battery. The other 2 are removed when removing the case. I am grateful for these videos because, otherwise, one is likely to remove extra screws & miss the hidden ones on some products.

Thanks,

Kev

kevs -
