Dell Inspiron 15-7569 RAM Replacement

Geschrieben von: Kevin Sanchez
  • Kommentare: 0
Dell Inspiron 15-7569 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

20 - 30 Minuten

Einleitung

You can follow this guide to replace your Dell Inspiron 15-7569's RAM if you would like to improve performance speed.

  1. YprrEJEZUL4d4PhQ
    YprrEJEZUL4d4PhQ
    VF2NVHJERHlUyvyX
    wDOCwqdCWDPq4CGB

    • Remove the (10) P58F black screws on the back cover using the Phillips #0 screwdriver.

    • After removing the screws, remove the back cover using a plastic or metal spudger.

  2. TMric4KMjyh1Y6FW
    TMric4KMjyh1Y6FW
    QRC5EJ1pXGAagZ6G
    rQWkiRQjN5B5lPwj

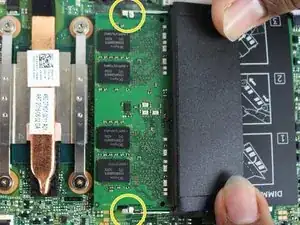

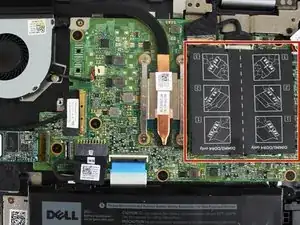

    • Locate the two black RAM "flaps" (pictured)

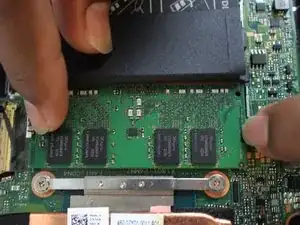

    • Lift each flap and push out on the metal clamps holding the RAM

    • The RAM will "pop" and "rise" when properly removed

  3. ahaSol2ROuoHOeJI
    ahaSol2ROuoHOeJI
    FOnarBMxNDGTZWEv
    ZKPCCcrfVNiwBvoZ

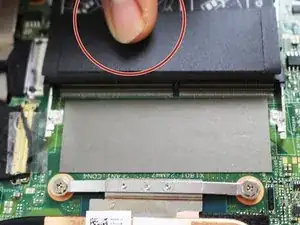

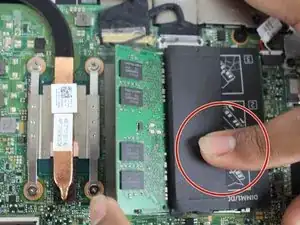

    • Gently remove the RAM by the edges.

Abschluss

To reassemble your device, follow these instructions in reverse order.
