Decent monitor for a decent price (free). This model is known to have issues with the power supply. Most common are are failed capacitors and switching diodes. Until I have the schematic off the power supply, I opted to replace the power supply with a known good one. It is a straight forward replacement, with the toughest part being the front bezel. It is a bit of a pain on the fingertips to unsnap it.

  1. TVaMnbKSvVDSSCr6
    TVaMnbKSvVDSSCr6
    F1cOKmPtLbb6SHOt
    AuOINqJHKut2SL5F
    • Here is a Dell 1908FPb LCD monitor without the stand.

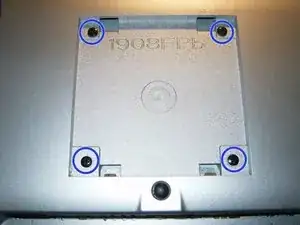

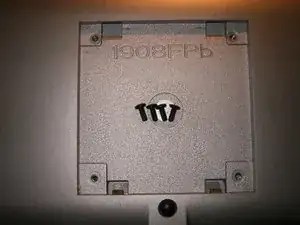

    • Remove the four (4) Phillips screws from the back of the monitor.

    • The four (4) screws are M3x10 machine screws

  2. 2bxeAiR3wGjTvf6W
    2bxeAiR3wGjTvf6W
    KCiPYBSgFMBE1g6X
    QwCFFO1RMIO1gYBv

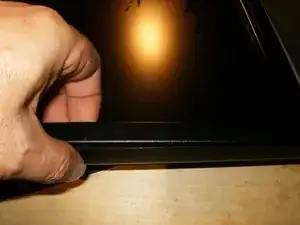

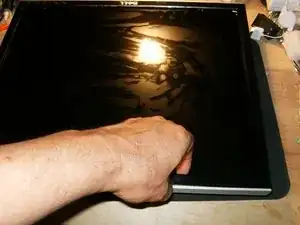

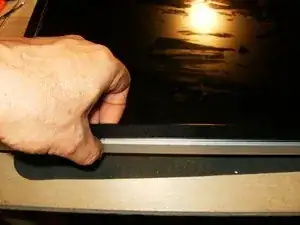

    • Start removing the front bezel. It is a snap fit and can be removed by inserting ones fingertips between the bezel and the LCD panel.

    • At this time just unsnap the bezel.

    • Continue to unsnap the bezel all the way around, with the side of the control buttons being last.

  3. AR21VixPDpZSunFI
    AR21VixPDpZSunFI
    FO3yJaVkxY3WDmCd
    kqNB45REMoAkVkiw

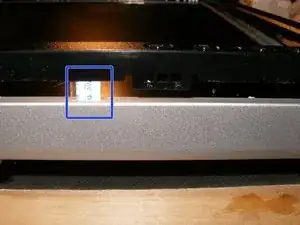

    • Unsnap the bezel at the button bar last. Do not try to lift the bezel up just yet.

    • The ribbon cable from the button bar still attaches the bezel to the monitor.

    • With the bezel loose, but still in place, turn the monitor upside down.

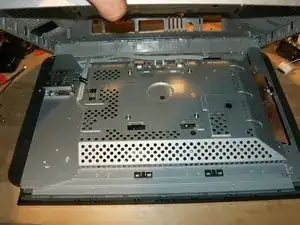

    • Lift the back cover of the monitor off and place it aside.

    • If the back does not come off easy, make sure that the front bezel is all the way unsnapped.

  4. wCKQDaYwlIt5GNxZ
    wCKQDaYwlIt5GNxZ
    6NLdjenNHZPFxoE2
    v34JmaIVBxKOAc35

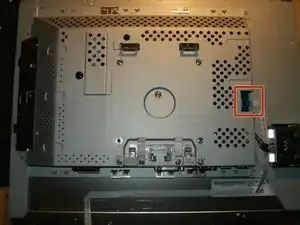

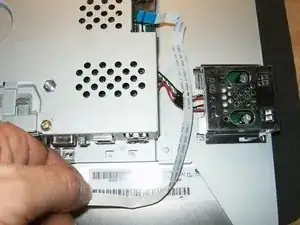

    • Here is the connector for the cable from the front button bar.

    • Unhook the cable by simply flipping the black clip away from the cable side.

    • Removing the cable will allow for the removal of the front bezel

  5. xCrBokxDle2qFKSY
    xCrBokxDle2qFKSY
    4FRex44yFdN2ql4N
    JKZLjQRlbvKJBOKu

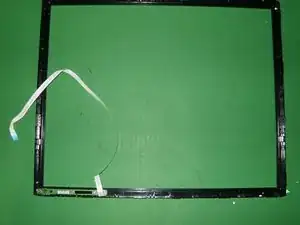

    • Remove the front bezel and set it aside.

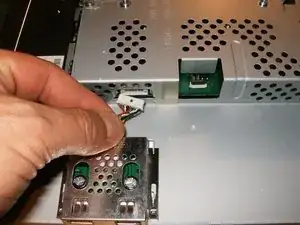

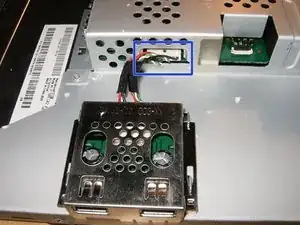

    • Next disconnect the USB ports

    • This connector is a simple pull connector. Pull on the connector itself, not the wires.

  6. V6XgEHfLJ3AeFNpW
    V6XgEHfLJ3AeFNpW
    WPQnuIXuLLGtXear
    6yWYeuUkRQUC2mt4

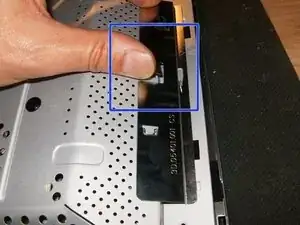

    • Next is the cover for the CCFL cables.

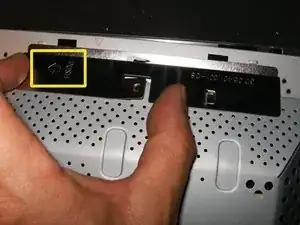

    • Lift the middle security tab,

    • and slide the cover into the opposite direction of the imprinted arrow

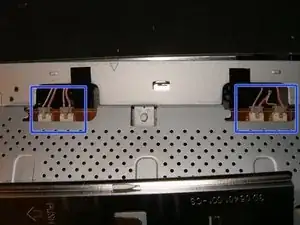

    • the cover can now be removed. Clearly visible are the connectors from the inverter to the CCFL's. This monitor obviously uses four (4) tubes.

  7. amQEfkceWkTekbQA
    amQEfkceWkTekbQA
    JwMViPfR2BXWueZ2
    i4SSGKjNiynL5Sm1

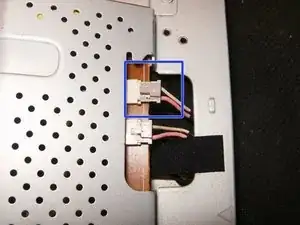

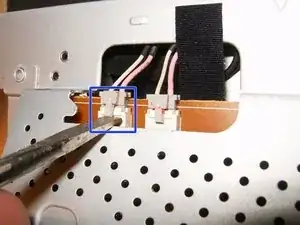

    • Use a screwdriver (or your fingernails) to lift the security tab

    • and remove the wire from the connector.

    • Remove all four (4) connectors

  8. MctAbohWDlwAGnmm
    MctAbohWDlwAGnmm
    miJpLBcXQObIMGMl
    PfQTvpWEgJCREqia

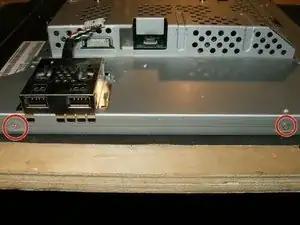

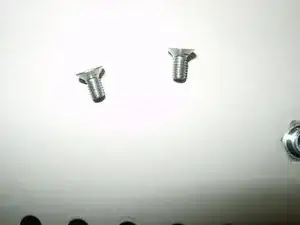

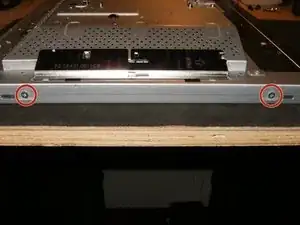

    • Remove the two Phillips screws on the right side of the panel.

    • The screws are M2x5

    • Remove the two Phillips screws on the left side of the panel. They are identical to the right side.

  9. A2AmpWKLbgIo15gW
    A2AmpWKLbgIo15gW
    rSH6BFrVXMWBKAmU
    wKhOHUZJTb63dUEV

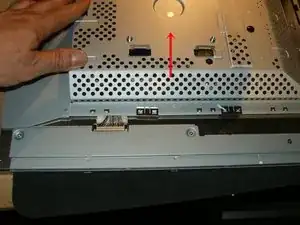

    • Do not remove the metal case from the panel yet. Slide it upward in the direction of the arrow, this will make the display data connector more accessible

    • To remove the connector, squeeze both metal clips together. Remove the cable by gently pulling on the connector, not the cable.

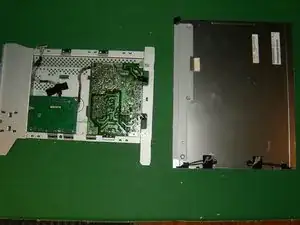

    • The panel and the metal case can now be separated. The power supply and the video board are both contained on the inside of the metal case.

  10. yMI2ci1ALcd3VNcy
    yMI2ci1ALcd3VNcy
    yVBfAkTNqvJrq4uB
    1rFZ2QfAGtVOZjBW

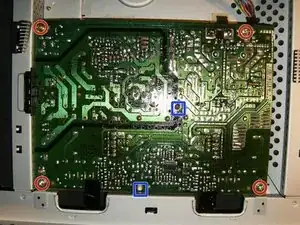

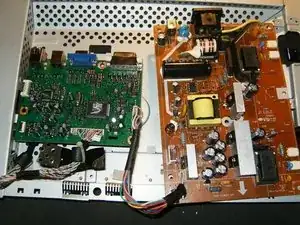

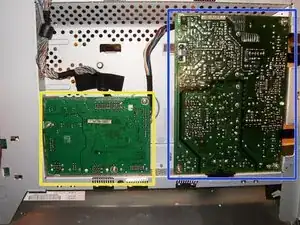

    • This is the power supply,

    • and the video board.

    • The power supply is mounted with four Phillips screws and two plastic standoffs

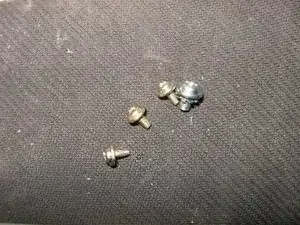

    • Remove the four screws. Three of those are brass colored M3x5, the bottom left is nickel colored M4x5 and is the grounding screw.

  11. QiP6FIMYybycfR1H
    QiP6FIMYybycfR1H
    qG4XMbNGWYLGVRaY
    jFLAdYDGoZFSgL5U

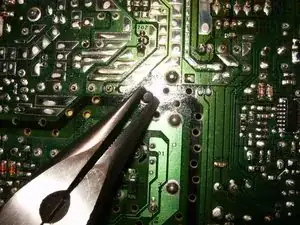

    • To loosen the plastic standoffs, use a pair of needle nose pliers (or similar) and squeeze the tops to free the board. Once it is free, flip it over onto the video board.

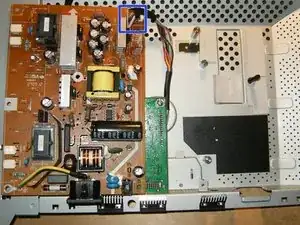

    • The cable from the power supply to the video board does not come off easy. To ensure that the connector will not break, it may be necessary to remove it from the video board. For that, remove the video board.

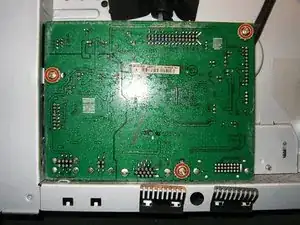

    • Remove the three Phillips screws. They are M3x5

  12. lOD1OJycAJexx4LF
    lOD1OJycAJexx4LF
    KiNib5hnIjfLFTCH
    a5oYYFXcT3FyQBVI

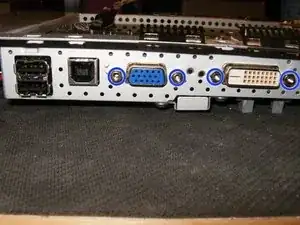

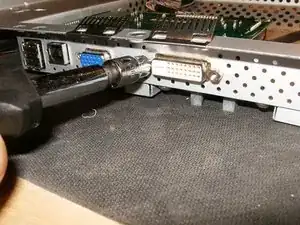

    • Remove the four standoff screws. Two from the VGA connector and two from the DVI connector.

    • Use a pair of pliers or a 4mm socket to remove those.

    • Remove the video board from the metal casing. There will be easy access to the cable with the power supply and the video board turned over.

  13. km3R1uO5WEpvsKrq
    km3R1uO5WEpvsKrq
    IrwCFoRkokrVyCDU

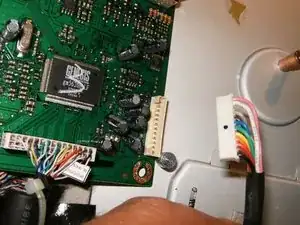

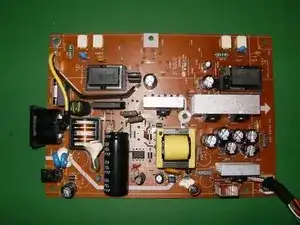

    • Disconnect the power supply connector from the video board.

    • The power supply can now either be replaced or repaired.

Abschluss

To reassemble your device, follow these instructions in reverse order.
