Dell 3100 (Touch) Battery Replacement

Geschrieben von: Isaac
  • Kommentare: 0
Dell 3100 (Touch) Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. HDk4SYkjI2gUxXVH
    HDk4SYkjI2gUxXVH
    qmUhD6LDuPqBBTYQ

    • Unscrew the nine PH#0 captive screws on the bottom of the device.

    • Use a pick to run along the outside of the device popping all the clips. Prying should not be necessary.

  2. GD3OIQF2QLHCrkIe
    GD3OIQF2QLHCrkIe
    KvMr5ABUrAN5ORx2

    • Pull carefully, but firmly, on the battery cable until it becomes detached.

  3. Fjfgb3i4fi426wWK

    • Remove these three M2x5 screws and take the battery out

    • If your replacement battery doesn't come with a cable, you will need to remove the cable from the old battery before disposing of it.

    • DO NOT throw batteries in the trash. Take them to a proper battery recycling center.

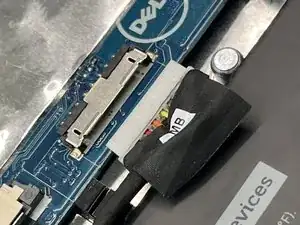

  4. TJCFuk2bEeuytbbD
    TJCFuk2bEeuytbbD
    Ue2WLLN4XL64JYXt

    • Use a plastic spudger to lift up the flap. Use the flap to pull the connector straight away from the board (towards the battery).

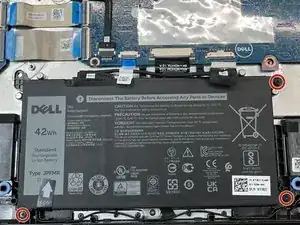

  5. QjZiEMYXmfdhxUt6

    • Remove 3 M2x4 screws

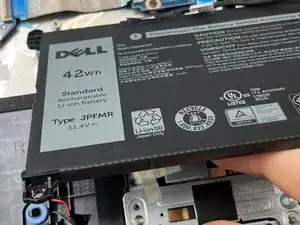

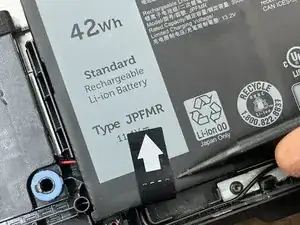

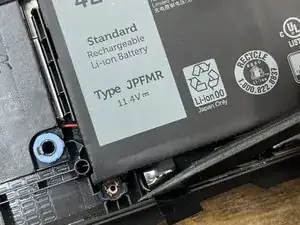

  6. aJyksyNi4TxeYLeX
    aJyksyNi4TxeYLeX
    pSQafEoIOTnqbIpF
    GqxDiLPfTQBSXBst

    • Use a spudger to detach the tab, and pull the tab up away from the device. This will break the adhesive holding in the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
