Dell Alienware 13 R3 Coin-Cell Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Alienware 13 R3 Coin-Cell Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten - 1 Stunde

Einleitung

In this guide, we will show you how to remove and replace the coin-cell battery.

Werkzeuge

Pro Tech Toolkit

Schritt 1

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Loosen the five captive screws that secure the base cover to the computer base.

Schritt 2

Using a plastic scribe, gently pry the base cover to release the tabs on the base cover from the slots on the computer base.

Schritt 3

Lift the base cover off the computer base.

Schritt 4

Using a plastic scribe, disconnect the battery cable from the system board.

Schritt 5

Press and hold the power button for five seconds to ground the system board.

Schritt 6

Connect the battery cable to the system board.

Schritt 7

Slide the tabs on the NEW base cover into the slots on the computer base and snap the base cover into place

Schritt 8

Tighten the five captive screws that secure the base cover to the computer base.

Schritt 9

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

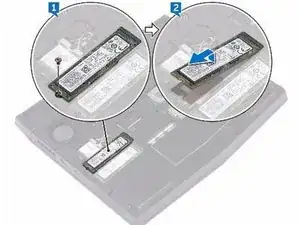

Remove the screw (M2x3) that secures the solid-state drive to the computer base.

Schritt 10

Lift and slide the solid-state drive from the solid-state drive slot.

Schritt 11

Align the notch on the NEW solid-state drive with the tab on the solid-state drive slot and slide the solid-state drive into the solid-state drive slot.

Schritt 12

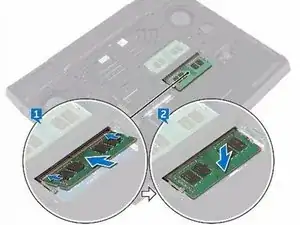

Press the memory module down until it clicks into place.

Schritt 13

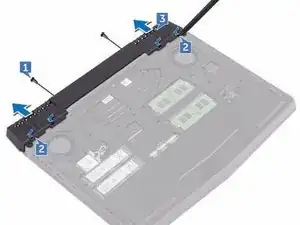

Remove the two screws (M2.5x6L) that secure the rear-I/O cover to the palm-rest assembly.

Schritt 14

Using a plastic scribe, gently release the tabs that secure rear-I/O cover to the computer base.

Schritt 15

Slide and remove the rear-I/O cover from the computer base.

Schritt 16

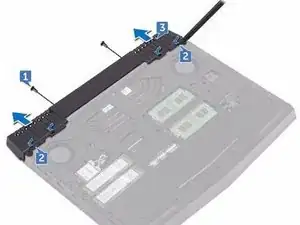

Slide the NEW rear-I/O cover into the slots on the computer base and snap the rear-I/O cover into place.

Schritt 17

Replace the two screws (M2.5x6L) that secure the rear-I/O cover to the palm-rest assembly.

Schritt 18

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

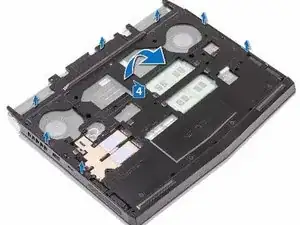

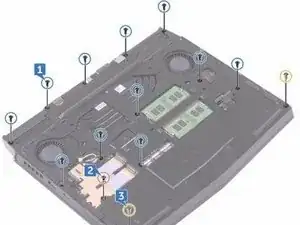

Remove the eleven (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

Schritt 19

Remove the (M2x3) screw that secures the computer base to the palm-rest assembly.

Schritt 20

Remove the two (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

Schritt 21

Lift the computer base from the palm-rest assembly.

Schritt 22

Align the screw holes on the NEW computer base with the screw holes on the palm-rest assembly.

Schritt 23

Replace the two (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

Schritt 24

Replace the (M2x3) screw that secures the computer base to the palm-rest assembly.

Schritt 25

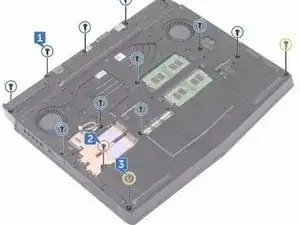

Replace the eleven (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

Schritt 26

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended that you note the BIOS setup program’s settings before removing the coin-cell battery.

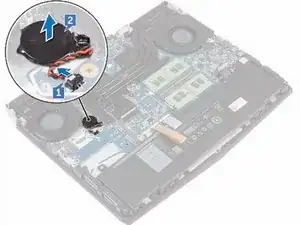

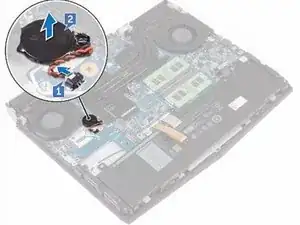

Disconnect the coin-cell battery cable from the system board.
