Dell Alienware 13 R3 Display Panel Replacement

Geschrieben von: Terrence15
  • Kommentare: 2
Dell Alienware 13 R3 Display Panel Replacement

Schwierigkeitsgrad

Difficult

Schritte

121

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we will show you how to remove and replace the Display Panel.

  1. CDsuOyUt4xSBGJju

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Loosen the five captive screws that secure the base cover to the computer base.

  2. DFmUSOI1LuVa6jag

    • Using a plastic scribe, gently pry the base cover to release the tabs on the base cover from the slots on the computer base.

  3. LQltbZTtjyoNwsEQ

    • Lift the base cover off the computer base.

  4. t5MXEC6enUskXQXq

    • Using a plastic scribe, disconnect the battery cable from the system board.

    • Press and hold the power button for five seconds to ground the system board.

    • Connect the battery cable to the system board.

  7. Vx31thWG3rueqP2K

    • Slide the tabs on the NEW base cover into the slots on the computer base and snap the base cover into place

  8. aH3ugbqIEuosxgsu

    • Tighten the five captive screws that secure the base cover to the computer base.

  9. 4wdEMnX3Xdg2OdVD

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: To avoid damaging the wireless card, do not place any cables under it.

    • Remove the screw (M2x3) that secures the wireless card and bracket to the computer base.

  10. NKN2ZgrTGfVpbIpf

    • Lift the wireless-card bracket off the wireless card.

  11. oWGCj3GO6JBN4iYU

    • Disconnect the antenna cables from the wireless card.

    • CAUTION: To avoid damaging the wireless card, do not place any cables under it.

    • Align the notch on the wireless card with the tab on the wireless-card slot.

    • Slide the NEW wireless card at an angle into the wireless-card slot.

    • Connect the antenna cables to the wireless card.

  15. xGOuAVKQrv6lakkK

    • Align the screw hole on the wireless-card bracket with the screw hole on the wireless card and the computer base.

  16. 2L2JlQxhAk2fDORt

    • Replace the screw (M2x3) that secures the wireless-card bracket to the wireless card and the computer base.

  17. GKvkbggsOeXboNLl

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the screw (M2x3) that secures the solid-state drive to the computer base.

  18. VKQYHlGoI2j2LH6C

    • Lift and slide the solid-state drive from the solid-state drive slot.

    • Align the notch on the NEW solid-state drive with the tab on the solid-state drive slot and slide the solid-state drive into the solid-state drive slot.

  20. LqUfvk4VGLQAjBBb

    • Press the memory module down until it clicks into place.

  21. CJrMUt4IkarHmNg3

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  22. I2OOcwppRYuQFEZI

    • Slide and remove the memory module from the memory-module slot.

    • Align the notch on the NEW memory module with the tab on the memory-module slot and slide the memory module firmly into the slot at an angle.

  24. BrkPe11SyDWw1K1W

    • Press the memory module down until it clicks into place.

  25. 6UyqMw2LPEPoRKVN

    • Remove the two screws (M2.5x6L) that secure the rear-I/O cover to the palm-rest assembly.

  26. 2kMjscXrEQN6aBVr

    • Using a plastic scribe, gently release the tabs that secure rear-I/O cover to the computer base.

    • Slide and remove the rear-I/O cover from the computer base.

  28. peJQ2EKGfciJWi5J

    • Slide the NEW rear-I/O cover into the slots on the computer base and snap the rear-I/O cover into place.

    • Replace the two screws (M2.5x6L) that secure the rear-I/O cover to the palm-rest assembly.

  30. INhC6txjkWOFAbiZ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the eleven (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

  31. PkbaxpEoy1Oh1LKi

    • Remove the (M2x3) screw that secures the computer base to the palm-rest assembly.

  32. 5LJ4E4qu5KQpRoct

    • Remove the two (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

  33. RpyaaNfBsDc4nJfB

    • Lift the computer base from the palm-rest assembly.

  34. e5IFHbxXyViEAjX5

    • Align the screw holes on the NEW computer base with the screw holes on the palm-rest assembly.

    • Replace the two (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

    • Replace the (M2x3) screw that secures the computer base to the palm-rest assembly.

    • Replace the eleven (M2.5x6L) screws that secure the computer base to the palm-rest assembly.

  38. PhALjMMwfWTwYHbO

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended that you note the BIOS setup program’s settings before removing the coin-cell battery.

    • Disconnect the coin-cell battery cable from the system board.

  39. mTjEEZSupYFdLaCH

    • Gently peel off the coin-cell battery along with its cable off the palm-rest assembly.

  40. RCiI6gpptwRnsBMZ

    • Adhere the NEW coin-cell battery to the palm-rest assembly.

    • Connect the coin-cell battery cable to the system board.

  42. qQeuJcQLDEttndr1

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • WARNING: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool before you touch it.

    • CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in your skin can reduce the heat transfer capability of the thermal grease.

    • Disconnect the left-fan cable from the system board.

  43. 2fWJLRLNmPCgklCO

    • Disconnect the right-fan cable from the system board.

  44. NZnywKD2uKdLso5i

    • In sequential order (as indicated on the heat-sink assembly), remove the seven screws (M2x3) that secure the heat-sink assembly to the system board.

    • Lift the heat-sink assembly off the system board.

  46. tgD1lJXv6gQ2MGXB

    • CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.

    • NOTE: The original thermal grease can be reused if the original system board and fan are reinstalled together. If either the system board or the fan is replaced, use the thermal pad provided in the kit to ensure that thermal conductivity is achieved.

    • Align the screw holes on the NEW heat-sink assembly with the screw holes on the system board.

    • In sequential order (indicated on the heat-sink assembly), replace the seven screws (M2x3) that secure the heat-sink assembly to the system board.

    • Connect the right-fan cable to the respective connector on the system board.

    • Connect the left-fan cable to the respective connector on the system board.

  50. Q66rS5FbS3PQTJHX

  51. YFl4yajiElFSPjlw

    • Lift the battery off the palm-rest assembly.

  52. bJvnMXiGeBeFgpc4

    • CAUTION: Ensure the keyboard and keyboard-backlit cables are not under the battery.

    • Using the alignment post, place the NEW battery on the palm-rest assembly.

  53. fSP3NNoxlTx5tolO

    • Adhere the keyboard connector that secures the battery to the palm-rest assembly.

  54. DCtYCBeruV4wXnS6

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program after you replace the system board.

    • NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must make the appropriate changes again after you replace the system board.

    • NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can reconnect the cables correctly after you replace the system board.

    • CAUTION: Place the computer on a clean, flat surface.

    • Turn the computer over.

  55. NfqMh5KRMExJykn5

    • Disconnect the logo-board cable from the system board.

  56. CnOWXsLbScQQGXHr

    • Using the pull-tab, disconnect the power-button board cable from the system board.

  57. pbknbS41ZPloUxGr

    • Open the latch and disconnect the display cable from the system board.

  58. BMNvaBROwESCFLAK

    • Turn the computer over.

  59. iJvLRhXaErVNsPj1

    • Remove the screw (M2.5x6L) that secures the USB Type-C port bracket to the system board and lift the USB Type-C port bracket off the system board.

    • Disconnect the power-adapter port cable from the system board.

  61. RvTo4YBjPsDGdEMy

    • Disconnect the speaker cable from the system board.

  62. OfZieAJyJJ2yAIXo

    • Open the latch and disconnect the keyboard cable from the system board.

  63. MDRmVTK4uIDEVaU2

    • Open the latch and disconnect the keyboard-backlight cable from the system board.

  64. 2BMXdFjMPSmN23jY

    • Open the latch and disconnect the touch-pad cable from the system board.

  65. kC6Sy3R2ZQnx1Xmv

    • Remove the screw (M2.5x6L) that secures the USB Type-C port bracket to the system board and lift the USB Type-C port bracket off the system board.

  66. a6DgNF6Hg3CwRR1L

    • Remove the two screws (M2.5x6L) that secure the system board to the palm- rest assembly.

  67. RTxWXVZPFwUMagcY

    • Lift the system board off the palm-rest assembly.

  68. HHr2DGcEoHxIDMDg

    • CAUTION: Ensure that no cables are under the system board.

    • Align the screw holes on the NEW system board with the screw holes on the palm- rest assembly.

  69. lpcycopvKomoWf2c

    • Replace the two screws (M2.5x6L) that secure the system-board to the palm- rest assembly.

  70. VKJuWggEPpAxwoDs

    • Align the screw hole on the USB Type-C port bracket with the screw hole on the system board on the back and right side of your computer.

  71. ClEQjb1RKVNQIj4i

    • Replace the screw (M2.5x6L) that secures the USB Type-C port bracket to the system board on the back and right side of your computer.

    • Slide the touch-pad cable into the connector on the system board and close the latch to secure the cable.

  73. 5pHE3L2ILwLfCgIE

    • Slide the keyboard-backlight cable into the connector on the system board and close the latch to secure the cable.

  74. xM15BYEmWrv4uLIV

    • Slide the keyboard cable into the connector on the system board and close the latch to secure the cable.

    • Connect the speaker cable to the system board.

    • Connect the power-adapter port cable to the system board.

  77. P1FXVILbcLB6CgJu

    • Turn the computer over.

    • Slide the display cable into the connector on the system board and close the latch to secure the cable.

    • Connect the power-button board cable to the system board.

    • Connect the logo-board cable to the system board.

  81. EyBIolwfROhm5LXm

  82. LkyuNgVb2QhMRxDw

    • Remove the logo-board cable from the routing guides on the palm-rest assembly.

  83. PRUAHLhQLbvBXDtQ

    • Remove the display cable from the routing guides on the palm-rest assembly.

  84. Ugp6MM1IVWOaKU5U

    • CAUTION: Place the computer on a clean, flat surface.

    • Turn the computer over.

  85. ZniseGFW3HZZpgRR

    • Remove the four screws (M2.5x6L) that secure the display assembly to the palm-rest assembly.

  86. eCSCyRYTUMmUNj31

    • Lift the display assembly off the palm-rest assembly.

  87. MUAwcBqF5SxoxGgW

    • Remove the cables from the routing holes on the palm-rest assembly.

  88. 4XAtsLbVHKYweawU

    • Place the display assembly on a clean, flat surface.

  89. CbfLXgIbmhC4q3OG

    • Route the cables through the routing holes on the palm-rest assembly.

  90. MVlJaJkjFeKDYsiv

    • Align the screw holes on the display hinges with the screw holes on the palm- rest assembly.

  91. LUMtLCajCCPWmKoG

    • Replace the four screws (M2.5x6L) that secure the display assembly to the palm-rest assembly.

  92. OXX35miWcyE1VNG4

    • Turn the computer over.

  93. iLWrRWCM1jM6uakW

    • Route the logo-board cable through the routing guides on the palm-rest assembly.

  94. bnJASVv1OUlrENBg

    • Route the antenna cables through the routing guides on the palm-rest assembly.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Using your fingertips, carefully pry up the inside edges of the display bezel.

  96. n2PBjMx1yrPVukuU

    • Carefully lift the display bezel and turn it over.

  97. JoVHEmHNtkuaUT3L

    • Open the latch and disconnect the alien head logo-board cable from the logo board.

  98. EhUUvpXUXHusdPBt

    • Peel off the tape that secures the logo-board cable to the logo board and disconnect the logo-board cable from the logo board.

  99. cZgNBiVSQ1BiyQXJ

    • Lift the display bezel off the display assembly.

  100. DG5qGGtJydCIxHoB

    • Connect the logo-board cable to the logo board.

  102. JjET4GABRTkkVDPN

    • Adhere the tape that secures the logo-board cable to the logo board.

  103. FqePbDXLEmZWQjdg

    • Slide the alien head logo-board cable into the logo board and close the latch to secure the cable.

    • Carefully turn the display bezel over.

  105. XdKSAlvYPJqQgdKO

    • Align the display bezel with the display back-cover and antenna assembly and gently snap the display bezel into place.

  106. r6vo6y1cHflrZIbi

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Using a plastic scribe, pry the camera module from the display back-cover and antenna assembly.

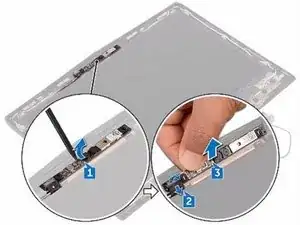

  107. No2YefEK2uWT3RFe

    • Peel the tape that secures the camera cable to the camera module and disconnect the camera cable from the camera module.

  108. ioV4DTcaEKURDPaD

    • Lift the camera module from the display back-cover and antenna assembly.

  109. BLYBBVRiUQ5mSSJX

    • Using the alignment posts, adhere the NEW camera module to the display back-cover and antenna assembly.

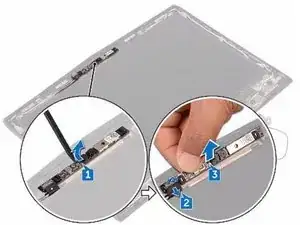

  110. G3BsBD21PHKHYRN1

    • Connect the camera cable to the camera module.

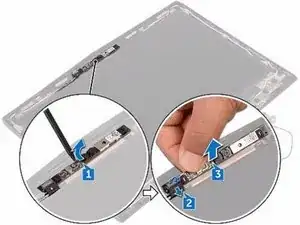

  111. btJgVS3EEuY1PEak

    • Adhere the tape that secures the camera cable to the camera module.

  112. XZI1SMgEIaNDxaBh

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

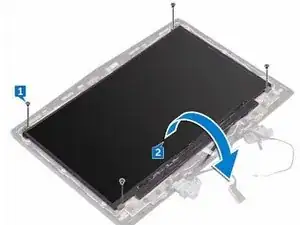

    • Remove the four screws (M1.6x2) that secure the display panel to the display back-cover and antenna assembly.

  113. CGFVxa6kDxisFeP6

    • Gently lift the display panel and turn it over.

  114. xZTfjaIaHaQHVj6F

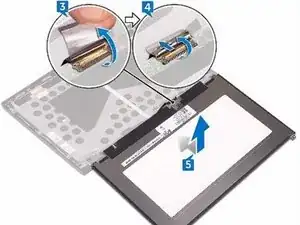

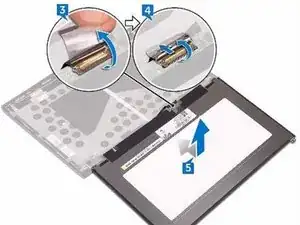

    • Peel the tape that secures the display cable to the display panel.

    • Open the latch and disconnect the display cable from the display panel.

  116. QUHjZqnyFcV1UeKF

    • Lift the display panel off the display back-cover.

    • Slide the display cable into the connector on the NEW display panel and close the latch to secure the cable.

    • Adhere the tape that secures the display cable to the display panel.

  119. lrF5xsor1OuaXlQK

    • Turn the display panel over and gently place it on the display back-cover.

    • CAUTION: Ensure that no cables are under the display panel.

  120. RWITKCXKEDwsFUDg

    • Align the screw holes on the display panel with the screw holes on the display back-cover and antenna assembly.

  121. Ba2EsuYlrjAgEpw4

    • Replace the four screws (M1.6x2) that secure the display panel to the display back-cover and antenna assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Terrence15

Mitglied seit: 18/12/17

78652 Reputation

2 Kommentare

some steps are repetitive or out of order.

Lee -

Note that this procedure is to follow if you’r not replacing the screen by the exact same model your laptop came with.

Screen ribbon cable sare different for every screens so you can not ‘‘plug and play’’ a 1080p screen if you had a 720p display, you need this complete teardown to replace de cable.

If you’r just replacing a broken screen by the same model it doesn’t require a complete teardown of the device because you keep the same screen ribbon cable.

Yoann Mourot -
