Dell Alienware 14 Keyboard Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware 14 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

65

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we will show you how to remove and replace the Keyboard.

  1. AUly4p24lkMiXbOL

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin. . After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Close the display, and turn the computer over.

  2. PlDt2b4iUPNjw5G4
    PlDt2b4iUPNjw5G4
    BjqZGYwnPEGTAVtm

    • Remove the screws that secure the base cover to the computer base.

  3. HNVkDR1WJNcvYwNp

    • Slide and lift the base cover off the computer base.

  4. ltgSXOiBYoVVsKTj

    • Align the tabs on the NEW base cover with the slots on the computer base and slide the base cover into place.

  5. UBOlWIMyyHalVQje

    • Replace the screws that secure the base cover to the computer base.

  6. GOwObvwAm6q2FMZn

    • Turn the computer over and open the display.

  7. ECGcOvDTxqjUEZhh

  8. JgZ2mXkYtIlOvXow

    • Remove the screws that secure the battery to the computer base.

  9. AVTaBmNYBiGADfla

    • Using the battery cable, lift the battery and release it from the tabs on the computer base.

  10. ENP4KacqHAB1Cses

    • Turn the computer over and open the display as far as possible.

  11. 6aORaEpkMHyHD5Lu

    • Press and hold the power button for five seconds to ground the system board.

    • Close the display and turn the computer over.

  13. lkagMTDgRiF1OdpQ

    • Align the tabs on the NEW battery with the slots on the computer base.

  14. VeaAdbLVWakCpoKa

    • Align the screw holes on the battery with the screw holes on the computer base.

  15. WUH1mRTLNN3GNsGN

    • Replace the screws that secure the battery to the computer base.

  16. IOvRG2DcjldTP3Fn

    • Connect the battery cable to the system-board connector.

  17. FqSYSKc4E1SawYwv
    FqSYSKc4E1SawYwv
    5ByRKAoUJQipZtSV

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is On or in Sleep state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • NOTE: The secondary hard-drive or solid-state drive is optional and can be installed in the optical drive bay.

    • Remove the screws that secure the secondary hard-drive assembly to the computer base.

  18. GVPxVoP4fVjTFl4L
    GVPxVoP4fVjTFl4L
    F1cmlLDnPC2P4fHl
    UKThGPPomMKPxoTf

    • Carefully lift the secondary hard-drive assembly and then lift the latches to release the secondary hard-drive cable from the system-board connector.

  19. H25xYnbJXfxnXNxl

    • Lift the secondary hard-drive assembly off the computer base.

  20. EhHtILE4vbmNHIfM

    • Turn the secondary hard-drive assembly over.

  21. Xgo2ED236R63Xnxy

    • Remove the screw that secures the secondary hard-drive assembly to the main bracket.

  22. nI1rMcjwpELcVBTI

    • Remove the screws that secure the secondary hard-drive to the secondary hard-drive bracket.

  23. iZ2QbVmRYLbCyRNv
    iZ2QbVmRYLbCyRNv
    IEkWMIF5YaIxjSVX

    • Slide and lift the secondary hard-drive off the secondary hard-drive bracket.

  24. KglUgxmR2GHOBeOf
    KglUgxmR2GHOBeOf
    qbyoGUmxUegswJsO

    • Disconnect the interposer from the secondary hard-drive connector.

  25. AHZTKQHTPlTyQYte

    • Connect the interposer to the secondary hard-drive connector.

  26. AhxPcUkVMlUF2x3V

    • Place the NEW secondary hard-drive in the secondary hard-drive bracket.

  27. roMnLGCjgNuIbY4d

    • Align the screw holes on the secondary hard-drive with the screw holes on the secondary hard-drive bracket.

  28. sBHpcpYaNHrZmelu

    • Replace the screws that secure the secondary hard-drive to the secondary hard-drive bracket.

  29. l1t4JIPKbvsjKRJ2

    • Align the screw hole on the secondary hard-drive assembly with the screw hole on the main bracket.

  30. oB4OUBqLlsXWCMDE

    • Replace the screw that secures the secondary hard-drive assembly to the main bracket.

  31. ZouwGC65kkD4JGQG

    • Turn the secondary hard-drive assembly over.

  32. TfcWKMAxdKhmKVZZ

    • Slide the secondary hard-drive cable into the system-board connector and press down on the connector latches to secure the cable.

  33. EeuuBdHeHEZfIjlG

    • Align the screw holes on the secondary hard-drive assembly with the screw holes on the computer base.

    • Replace the screws that secure the secondary hard-drive assembly to the computer base.

  35. ARRdmIuPuXroshjP
    ARRdmIuPuXroshjP
    TDneQOHRGXy3e6Cf

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Lift the connector latch and pull the pull-tab to disconnect the status-light board cable from the system-board connector and slide the cable into the slot on the computer base.

  36. QON1lZqKJQUYDs2e

    • Remove the screws that secure the palm -rest assembly to the computer base.

  37. MlSSMuSi16tVGsTn

    • Turn the computer over and open the display as far as possible.

  38. rakR5yNnu1iwLvVK
    rakR5yNnu1iwLvVK
    tFV4qC1qiOwdDPJt

    • Using a plastic scribe, pry the palm-rest assembly from the computer base.

  39. Acmkee5IrORCxOmZ

    • Carefully lift the palm-rest assembly and turn it over.

  40. PhFEFapURAVpPP3j
    PhFEFapURAVpPP3j
    Tfa5XiYCwuAD4Kqv

    • Release the connector latches to disconnect the flexi-cable from the system board.

    • Connect the flexi-cable to the connector on the system board.

  44. nEiTrJgmu5ZLtjW1

    • Turn the NEW palm-rest assembly over and slide the status-light board cable through the slot on the computer base.

    • Align the palm-rest assembly over the computer base and snap the palm-rest assembly into place.

  46. FLPxOCqClGPmL261

    • Close the display and turn the computer over.

  47. QpdPapbpWUaYhoPS

    • Replace the screws that secure the palm-rest assembly to the computer base.

  48. LcSn3TQm6kjju2DV

    • Slide the status-light board cable into the system-board connector and press on the connector latch to secure the cable.

  49. RUo4WL3AFPAdMmLv
    RUo4WL3AFPAdMmLv
    E3ErmZNBCNagceIx
    ae1ZTCNj4ne4q4hC

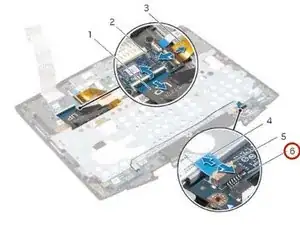

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the keyboard.

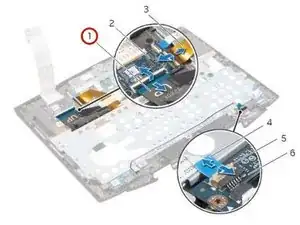

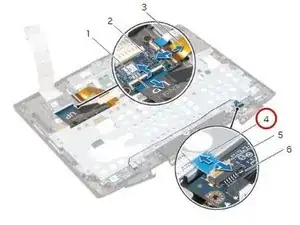

    • Lift the connector latch and disconnect the power-button board cable from the status-light board connector.

  50. KmLAsl51GoUMcGil

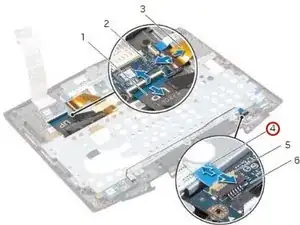

    • Peel the power-button board cable off the keyboard bracket.

  51. IyL6mlgT2WHdDTgO
    IyL6mlgT2WHdDTgO
    DWPEmgkHSSXBjIf6
    fQWGBnuWSLXUEPRh

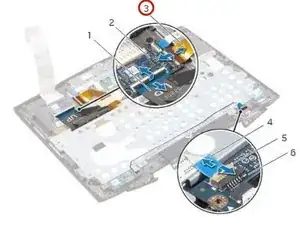

    • Lift the connector latches and disconnect the keyboard cable and keyboard-backlight cable from the keyboard-board connectors.

  52. yIKptW2JlkOngLjC

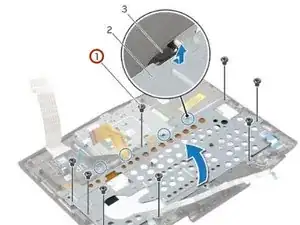

    • Remove the screws that secure the keyboard bracket to the palm-rest assembly.

  53. eCKklGDIWWnVttEi

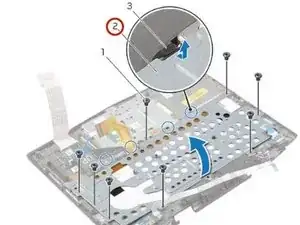

    • Lift the keyboard bracket at an angle and release it from the tabs on the palm-rest assembly.

  54. xPxCNDQh2wfVluGN

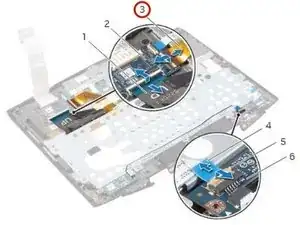

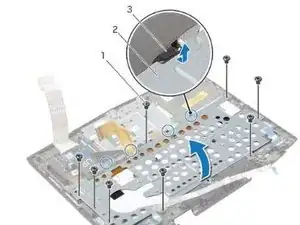

    • Slide the keyboard cable and keyboard-backlight cable through the keyboard bracket.

  55. PJLATPu41qsxjFjF

    • Lift the keyboard bracket off the keyboard.

  56. JDujZWcygBmRZVp1

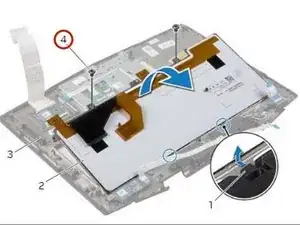

    • Remove the screws that secure the keyboard to the palm-rest assembly.

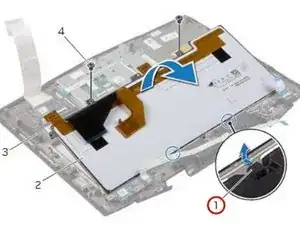

  57. rurxsROGUotypMuv
    rurxsROGUotypMuv
    HuQKVICo1JqRNJYE

    • Lift the keyboard and release it from the tabs on the palm-rest assembly.

  58. SIsaLM2a1AyFWWR4

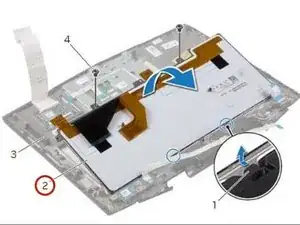

    • Slide the NEW keyboard under the tabs of the palm-rest assembly and align the screw holes on the keyboard with the screw holes on the palm-rest assembly.

  59. PneeqLDK5LBAZghP

    • Replace the screws that secure the keyboard to the palm-rest assembly.

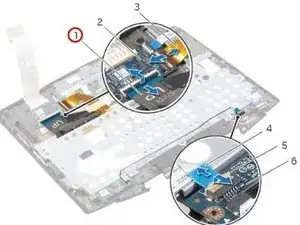

  60. s6RqHvwHxHPRvtbT
    s6RqHvwHxHPRvtbT
    BXXdFTvUDZyCxluJ

    • Slide the keyboard cable and keyboard-backlight cable through the keyboard bracket.

  61. KVZ5IMMtQSbwKjmg
    KVZ5IMMtQSbwKjmg
    51rrHoZYBZoIddRp

    • Slide the keyboard bracket under the tabs on the palm-rest assembly and align the screw holes on the keyboard bracket with the screw holes on the palm-rest assembly.

  62. DjU1NtJmkr66Pfx5

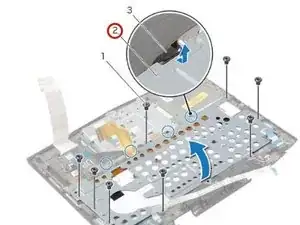

    • Replace the screws that secure the keyboard bracket to the palm-rest assembly.

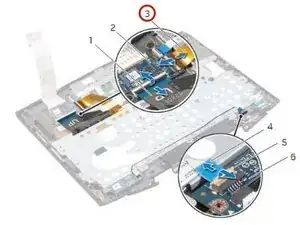

  63. wuBdEQbjaVmL46EF
    wuBdEQbjaVmL46EF
    GAx3RrBjm2nHXPG2

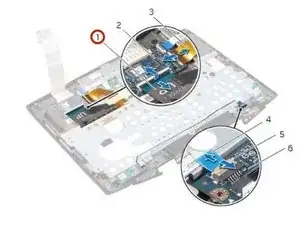

    • Slide the keyboard cable and keyboard-backlight cable into the keyboard-board connectors and press down on the connector latches to secure the cables.

  64. baGagMXSw2oD5ihu

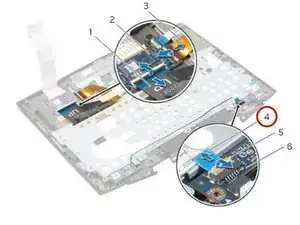

    • Route the power-button board cable on the keyboard bracket and adhere the cable to the keyboard bracket.

  65. hdOXFOtBBUYfroUS
    hdOXFOtBBUYfroUS
    YlrlQ3pqdHphdLqJ

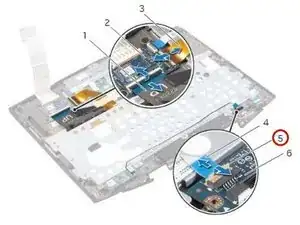

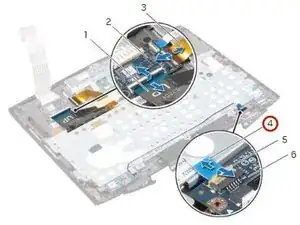

    • Slide the power-button board cable into the status-light board connector and press down on the connector latch to secure the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
