Dell Alienware 14 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

20

Zeitaufwand

3 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the memory modules.

  1. AUly4p24lkMiXbOL

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin. . After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Close the display, and turn the computer over.

  2. PlDt2b4iUPNjw5G4
    PlDt2b4iUPNjw5G4
    BjqZGYwnPEGTAVtm

    • Remove the screws that secure the base cover to the computer base.

  3. HNVkDR1WJNcvYwNp

    • Slide and lift the base cover off the computer base.

  4. ltgSXOiBYoVVsKTj

    • Align the tabs on the NEW base cover with the slots on the computer base and slide the base cover into place.

  5. UBOlWIMyyHalVQje

    • Replace the screws that secure the base cover to the computer base.

  6. GOwObvwAm6q2FMZn

    • Turn the computer over and open the display.

  7. ECGcOvDTxqjUEZhh

  8. JgZ2mXkYtIlOvXow

    • Remove the screws that secure the battery to the computer base.

  9. AVTaBmNYBiGADfla

    • Using the battery cable, lift the battery and release it from the tabs on the computer base.

  10. ENP4KacqHAB1Cses

    • Turn the computer over and open the display as far as possible.

  11. 6aORaEpkMHyHD5Lu

    • Press and hold the power button for five seconds to ground the system board.

    • Close the display and turn the computer over.

  13. lkagMTDgRiF1OdpQ

    • Align the tabs on the NEW battery with the slots on the computer base.

  14. VeaAdbLVWakCpoKa

    • Align the screw holes on the battery with the screw holes on the computer base.

  15. WUH1mRTLNN3GNsGN

    • Replace the screws that secure the battery to the computer base.

  16. IOvRG2DcjldTP3Fn

    • Connect the battery cable to the system-board connector.

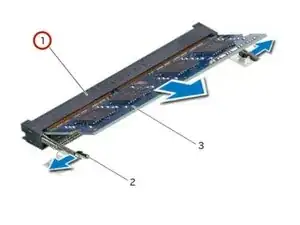

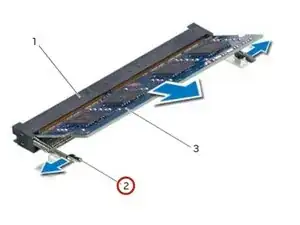

  17. tXYYyMxVXTRSRbBe
    tXYYyMxVXTRSRbBe
    mSOkssZQBqT6pbrO
    kKcOjRdhIj2JIXUu

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory-module securing clips.

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

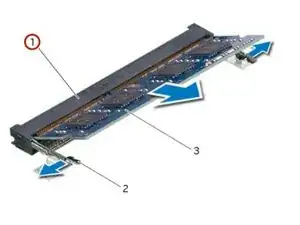

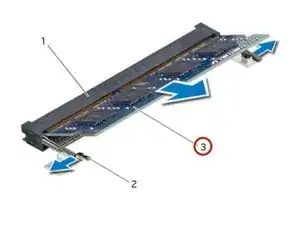

  18. DTXHUgkDUJVRb3MW
    DTXHUgkDUJVRb3MW
    xXloXRoEOXN1hIDK

    • Remove the memory module from the memory-module connector.

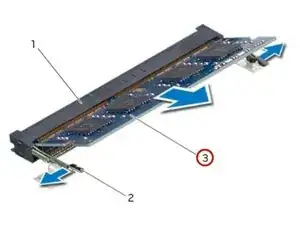

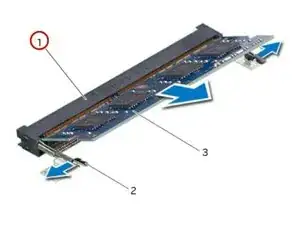

  19. BYrBCVhrHW2YrGUX
    BYrBCVhrHW2YrGUX
    DPbAmTRyNO4hTKV5

    • Align the notch on the NEW memory module with the tab on the memory-module connector.

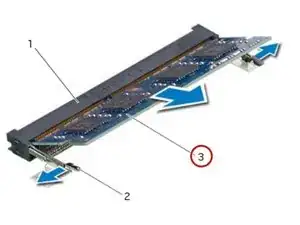

  20. 3BIAxpDBypqCK2Ix

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
