Dell Alienware 14 Tron Lights Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware 14 Tron Lights Replacement

Schwierigkeitsgrad

Moderate

Schritte

61

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we will show you how to remove and replace the Tron Lights.

  1. AUly4p24lkMiXbOL

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin. . After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Close the display, and turn the computer over.

  2. PlDt2b4iUPNjw5G4
    PlDt2b4iUPNjw5G4
    BjqZGYwnPEGTAVtm

    • Remove the screws that secure the base cover to the computer base.

  3. HNVkDR1WJNcvYwNp

    • Slide and lift the base cover off the computer base.

  4. ltgSXOiBYoVVsKTj

    • Align the tabs on the NEW base cover with the slots on the computer base and slide the base cover into place.

  5. UBOlWIMyyHalVQje

    • Replace the screws that secure the base cover to the computer base.

  6. GOwObvwAm6q2FMZn

    • Turn the computer over and open the display.

  7. ECGcOvDTxqjUEZhh

  8. JgZ2mXkYtIlOvXow

    • Remove the screws that secure the battery to the computer base.

  9. AVTaBmNYBiGADfla

    • Using the battery cable, lift the battery and release it from the tabs on the computer base.

  10. ENP4KacqHAB1Cses

    • Turn the computer over and open the display as far as possible.

  11. 6aORaEpkMHyHD5Lu

    • Press and hold the power button for five seconds to ground the system board.

    • Close the display and turn the computer over.

  13. lkagMTDgRiF1OdpQ

    • Align the tabs on the NEW battery with the slots on the computer base.

  14. VeaAdbLVWakCpoKa

    • Align the screw holes on the battery with the screw holes on the computer base.

  15. WUH1mRTLNN3GNsGN

    • Replace the screws that secure the battery to the computer base.

  16. IOvRG2DcjldTP3Fn

    • Connect the battery cable to the system-board connector.

  17. FqSYSKc4E1SawYwv
    FqSYSKc4E1SawYwv
    5ByRKAoUJQipZtSV

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is On or in Sleep state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • NOTE: The secondary hard-drive or solid-state drive is optional and can be installed in the optical drive bay.

    • Remove the screws that secure the secondary hard-drive assembly to the computer base.

  18. GVPxVoP4fVjTFl4L
    GVPxVoP4fVjTFl4L
    F1cmlLDnPC2P4fHl
    UKThGPPomMKPxoTf

    • Carefully lift the secondary hard-drive assembly and then lift the latches to release the secondary hard-drive cable from the system-board connector.

  19. H25xYnbJXfxnXNxl

    • Lift the secondary hard-drive assembly off the computer base.

  20. EhHtILE4vbmNHIfM

    • Turn the secondary hard-drive assembly over.

  21. Xgo2ED236R63Xnxy

    • Remove the screw that secures the secondary hard-drive assembly to the main bracket.

  22. nI1rMcjwpELcVBTI

    • Remove the screws that secure the secondary hard-drive to the secondary hard-drive bracket.

  23. iZ2QbVmRYLbCyRNv
    iZ2QbVmRYLbCyRNv
    IEkWMIF5YaIxjSVX

    • Slide and lift the secondary hard-drive off the secondary hard-drive bracket.

  24. KglUgxmR2GHOBeOf
    KglUgxmR2GHOBeOf
    qbyoGUmxUegswJsO

    • Disconnect the interposer from the secondary hard-drive connector.

  25. AHZTKQHTPlTyQYte

    • Connect the interposer to the secondary hard-drive connector.

  26. AhxPcUkVMlUF2x3V

    • Place the NEW secondary hard-drive in the secondary hard-drive bracket.

  27. roMnLGCjgNuIbY4d

    • Align the screw holes on the secondary hard-drive with the screw holes on the secondary hard-drive bracket.

  28. sBHpcpYaNHrZmelu

    • Replace the screws that secure the secondary hard-drive to the secondary hard-drive bracket.

  29. l1t4JIPKbvsjKRJ2

    • Align the screw hole on the secondary hard-drive assembly with the screw hole on the main bracket.

  30. oB4OUBqLlsXWCMDE

    • Replace the screw that secures the secondary hard-drive assembly to the main bracket.

  31. ZouwGC65kkD4JGQG

    • Turn the secondary hard-drive assembly over.

  32. TfcWKMAxdKhmKVZZ

    • Slide the secondary hard-drive cable into the system-board connector and press down on the connector latches to secure the cable.

  33. EeuuBdHeHEZfIjlG

    • Align the screw holes on the secondary hard-drive assembly with the screw holes on the computer base.

    • Replace the screws that secure the secondary hard-drive assembly to the computer base.

  35. ARRdmIuPuXroshjP
    ARRdmIuPuXroshjP
    TDneQOHRGXy3e6Cf

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Lift the connector latch and pull the pull-tab to disconnect the status-light board cable from the system-board connector and slide the cable into the slot on the computer base.

  36. QON1lZqKJQUYDs2e

    • Remove the screws that secure the palm -rest assembly to the computer base.

  37. MlSSMuSi16tVGsTn

    • Turn the computer over and open the display as far as possible.

  38. rakR5yNnu1iwLvVK
    rakR5yNnu1iwLvVK
    tFV4qC1qiOwdDPJt

    • Using a plastic scribe, pry the palm-rest assembly from the computer base.

  39. Acmkee5IrORCxOmZ

    • Carefully lift the palm-rest assembly and turn it over.

  40. PhFEFapURAVpPP3j
    PhFEFapURAVpPP3j
    Tfa5XiYCwuAD4Kqv

    • Release the connector latches to disconnect the flexi-cable from the system board.

    • Connect the flexi-cable to the connector on the system board.

  44. nEiTrJgmu5ZLtjW1

    • Turn the NEW palm-rest assembly over and slide the status-light board cable through the slot on the computer base.

    • Align the palm-rest assembly over the computer base and snap the palm-rest assembly into place.

  46. FLPxOCqClGPmL261

    • Close the display and turn the computer over.

  47. QpdPapbpWUaYhoPS

    • Replace the screws that secure the palm-rest assembly to the computer base.

  48. LcSn3TQm6kjju2DV

    • Slide the status-light board cable into the system-board connector and press on the connector latch to secure the cable.

  49. B1rWU4srsNtOyXWE

  50. 2VDsBCIJkHbFNsq3

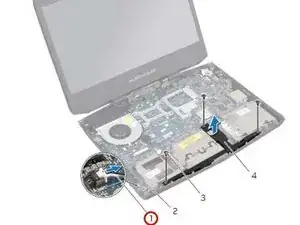

    • Disconnect the subwoofer cable from the system-board connector.

  51. 55ytBESeWKiNy1DV

    • Note the subwoofer cable routing and remove it from the routing guide.

  52. sUt4evsb6KciGLwo

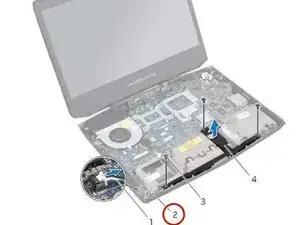

    • Lift the subwoofer along with its cable away from the computer base.

  53. C2Nlv5wfZUDZctq3

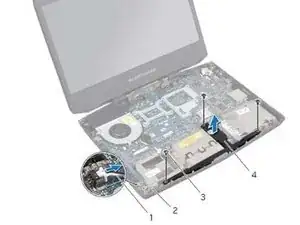

    • Use the alignment posts on the computer base to keep the NEW subwoofer in place.

  54. MGKgPlv1B2Korfu1

    • Replace the screws that secure the subwoofer to the computer base.

  55. xGpG5I6UxqTssYfr

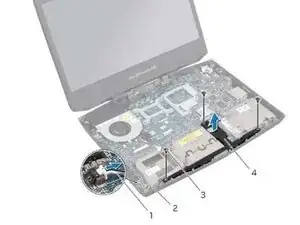

    • Route the subwoofer cable through the routing guide and connect the cable to the system-board connector.

  56. lubG1L4AVfSD1gQj

  57. nVWD6GhOQAclB5kP

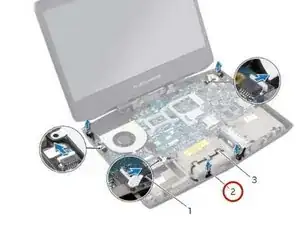

    • Disconnect the tron lights from the optical fibers.

  58. jUPEOgaqe2eeVHle

    • Lift the tron lights along with their cables off the computer base.

  59. Sk2RMw2KKQNj3wKm

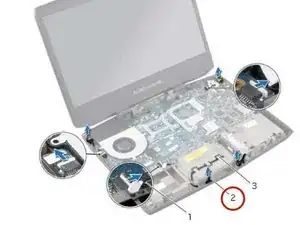

    • Connect the NEW tron lights to the optical fibres.

  60. ijPf2Q2RrkTrkflE
    ijPf2Q2RrkTrkflE
    LHALSlnj4ZrLWYXx

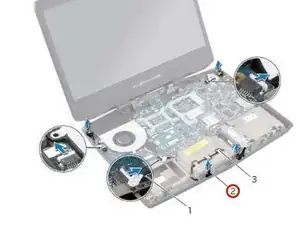

    • Route the tron-light cables through the routing guides on the computer base.

  61. ZxjEhRxI3w6WX6RN

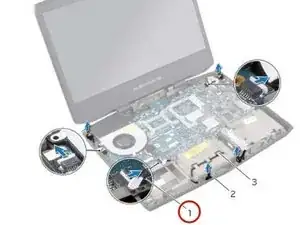

    • Connect the tron-light cables to their respective connectors on the system-board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
