Dell Alienware 15 R2 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

7 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. IDSBLJLaJCSKSTPO

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Solid-state drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the solid-state drive while the computer is in sleep or on state.

    • Remove the screw that secures the solid-state drive to the computer base.

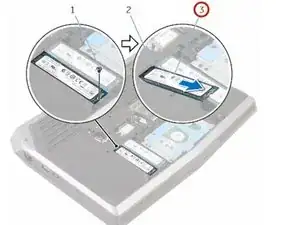

  2. n51mGCChmQqYyF5x
    n51mGCChmQqYyF5x

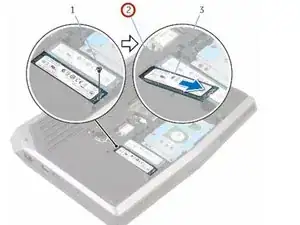

    HZXLfjLj3K64YtVp

    • Slide and remove the solid-state drive from the solid-state drive slot.

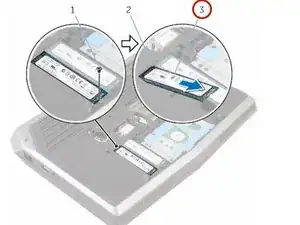

  3. oMsgJ1MjcvCetZRh
    oMsgJ1MjcvCetZRh
    3rFOOFMwsWDtI1XK

    • Slide the NEW solid-state drive into the solid-state drive slot.

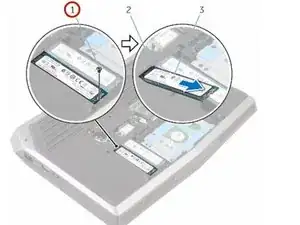

  4. JnXyuZluRJ5fiChj

    • Align the screw hole on the solid-state drive with the screw hole on the computer base.

  5. BILDs2ltstfk1xsf

    • Replace the screw that secures the solid-state drive to the computer base.

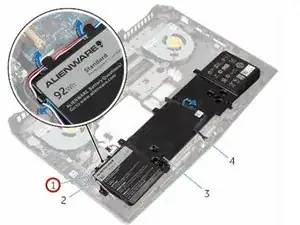

  6. KA1ddKa1sYJayDPC
    KA1ddKa1sYJayDPC
    nP4E3llQwNsFGYpD

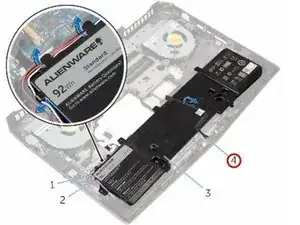

  7. AklZkLKed3HHmsVt

    • Note the front AlienFX LED cable routing and peel off the cable from the battery.

  8. G6ZyP6oiOxT1afYY

    • Remove the screws that secure the battery to the computer base.

  9. QXvqFp2BMyUtGUg1

    • Lift the battery off the computer base.

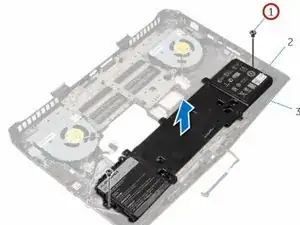

  10. HPO1xGkUkQTrusyR

    • Align the screw holes on the NEW battery with the screw holes on the computer base.

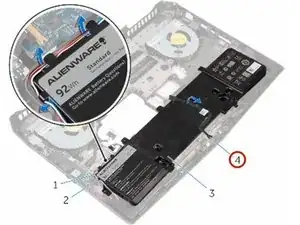

  11. 2hb2nbSqQeDkGGsq

    • Adhere the front AlienFX LED cable to the battery.

  12. 2jO6tN6HBRbXUUDx

    • Route the speaker cable through the routing guides on the battery.

  13. AnJr3KnWDkIjNYPI

    • Replace the screws that secure the battery to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
