Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. muunDGnaLwsmvHIH
    muunDGnaLwsmvHIH
    lFRwOtyf1UdqCLpT
    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

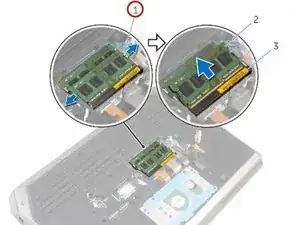

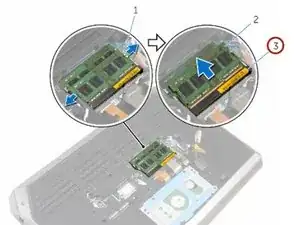

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. aXBc4HeyWhosp2Ey
    aXBc4HeyWhosp2Ey
    QN6OSEPSeEmcvaUV

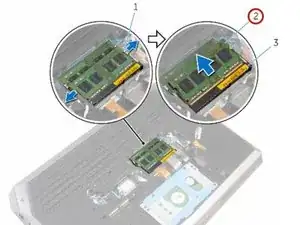

    • Slide and remove the memory module from the memory-module slot.

  3. hMc33ZxLZb4iP6NX

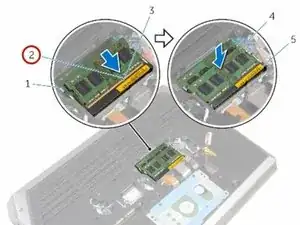

    • Align the notch on the NEW memory module with the tab on the memory- module slot.

  4. CuMsUStpfYb2rnIV
    CuMsUStpfYb2rnIV
    TMdCP4OmZDolxxbN

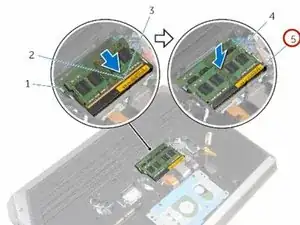

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
