Dell Alienware 15 R3 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware 15 R3 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 7 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. TEuWWkQB5pEPUUtA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

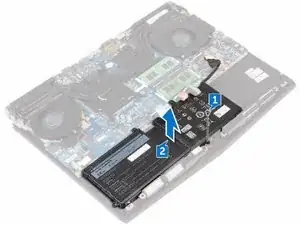

    • Remove the screw (M2.5x5) that secures the battery to the palm-rest assembly.

  2. FSeNIAVEmCeq46hf

    • Lift the battery off the palm-rest assembly.

  3. ZrkFQCqotctbb6Mm

    • Align the screw hole on the NEW battery with the screw hole on the palm-rest assembly.

  4. tHQBnR6vwmVqttcV

    • Replace the screw (M2.5x5) that secures the battery to the palm-rest assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
