Dell Alienware 15 R3 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware 15 R3 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. LsltHA56YdlsmPGY

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

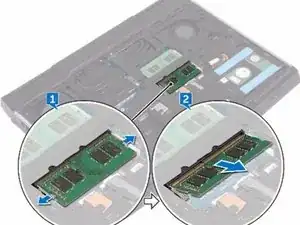

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. tSrXLqYZLLuZqOIO

    • Slide and remove the memory module from the memory-module slot.

  3. gFdIyimBJVcVPaRE

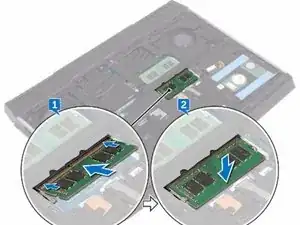

    • Align the notch on the NEW memory module with the tab on the memory-module slot and slide the memory module firmly into the slot at an angle.

  4. qZQqPpNMCSuLxAC5

    • Press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
