Dell Alienware 15 R3 Motherboard Replacement

Geschrieben von: Jake Nelson
  • Kommentare: 1
Dell Alienware 15 R3 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

1 - 2 Stunden

Einleitung

If you are trying to replace the motherboard for the Dell Alienware 15 R3 this is a step by step guide to help you.

  1. ugaRUHPSOvfFUTvZ
    ugaRUHPSOvfFUTvZ
    YkXWVKpkLyJqZUEQ
    XA6lvmKoGmwOofCk

    • Before you begin, turn off the laptop and unplug the charger.

    • Flip the laptop over so that the backside is facing up.

    • Use a Phillips #00 screwdriver to remove the six 13.0 mm screws from the sides of the back case.

    • Use a Phillips #00 screwdriver to remove one 5.0 mm screw from the back of the laptop.

  2. fUNUpWMVqyjxpxFL

    • Use the opening tool to pry the back case from the computer.

    • Use the opening tool and work your way around the perimeter of the back case to gently release the clips.

    • Start from the black vent for an easier removal.

    • Lift the back case off of the laptop.

  3. 32WCjabHJbsVBp2Y

    • Use a Phillips #00 screwdriver to remove two screws from the side of the laptop.

  4. YNPiUCeWDkjAUuuZ
    YNPiUCeWDkjAUuuZ
    yDFDTJJc1UA3sLei

    • Use an opening tool to release the four tabs from the hinge cover and gently pry it off.

  5. 1BrTAjENIIRlxHMb
    1BrTAjENIIRlxHMb
    LLGQigK2VlVfaKQl
    yDnaadj4P4Eji3II

    • Use a Phillips #00 screwdriver to remove nine screws from the chassis.

    • Use a spudger or opening tool to remove the chassis and reveal the battery, fan, motherboard, and other components.

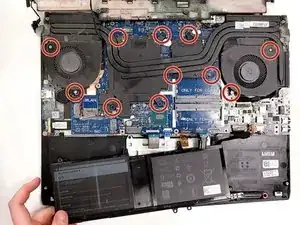

  6. DCqJrsKPpQLKhhIZ

    • Before you begin, disconnect the battery cable from the motherboard. Use the tip of a spudger or your fingernail to flip up the small locking flap. Then, you can safely pull the battery cable out.

    • Use a Phillips #00 screwdriver to remove the eleven screws connecting the fan to the motherboard.

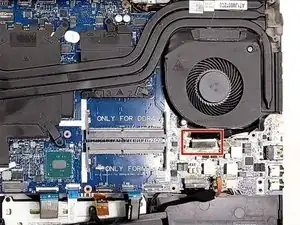

  7. XqJVvNXhLGfuH6BP
    XqJVvNXhLGfuH6BP
    pAGIIFCsxNB3IU2i

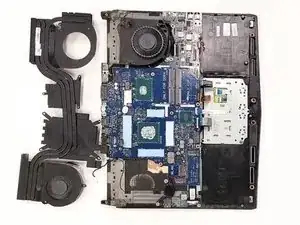

    • Detach the ribbon cable connecting the heat sink to the motherboard.

    • Pull the heat sink off of the fan.

    • Be careful as you lift it off the fan so it doesn't bend.

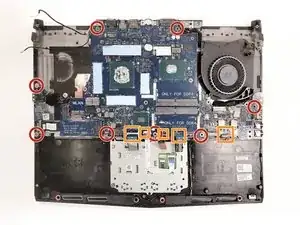

  8. 1SWFBJwWc1HfANFC

    • Use a Phillips #00 screwdriver to remove the eight screws from the motherboard.

    • Detach the remaining ribbon cables from the motherboard.

    • Remove the motherboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jake Nelson

Mitglied seit: 22/09/22

578 Reputation

Ein Kommentar

This guide completely skips disengaging the battery, which should be done before any components, and it should be plugged back in last.

Paul Wilson -
