Dell Alienware 15 R3 Wi-Fi Card Replacement

Geschrieben von: Jake Nelson
  • Kommentare: 0
Dell Alienware 15 R3 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 - 45 Minuten

Einleitung

If you need to replace the Wi-Fi card from your Dell Alienware 15 R3, follow this guide.

  1. ugaRUHPSOvfFUTvZ
    ugaRUHPSOvfFUTvZ
    YkXWVKpkLyJqZUEQ
    XA6lvmKoGmwOofCk

    • Before you begin, turn off the laptop and unplug the charger.

    • Flip the laptop over so that the backside is facing up.

    • Use a Phillips #00 screwdriver to remove the six 13.0 mm screws from the sides of the back case.

    • Use a Phillips #00 screwdriver to remove one 5.0 mm screw from the back of the laptop.

  2. fUNUpWMVqyjxpxFL

    • Use the opening tool to pry the back case from the computer.

    • Use the opening tool and work your way around the perimeter of the back case to gently release the clips.

    • Start from the black vent for an easier removal.

    • Lift the back case off of the laptop.

  3. 32WCjabHJbsVBp2Y

    • Use a Phillips #00 screwdriver to remove two screws from the side of the laptop.

  4. YNPiUCeWDkjAUuuZ
    YNPiUCeWDkjAUuuZ
    yDFDTJJc1UA3sLei

    • Use an opening tool to release the four tabs from the hinge cover and gently pry it off.

  5. 1BrTAjENIIRlxHMb
    1BrTAjENIIRlxHMb
    LLGQigK2VlVfaKQl
    yDnaadj4P4Eji3II

    • Use a Phillips #00 screwdriver to remove nine screws from the chassis.

    • Use a spudger or opening tool to remove the chassis and reveal the battery, fan, motherboard, and other components.

  6. phUlgKOMWw5uwqmi
    phUlgKOMWw5uwqmi
    e61FOTyvDLYmFBD3
    LV2eDscgqj6aSNRc

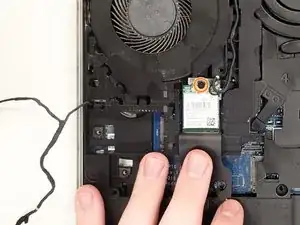

    • Open the flap to reveal the Wi-Fi card.

    • Use the Phillips #00 screwdriver to remove the screw securing the Wi-Fi card.

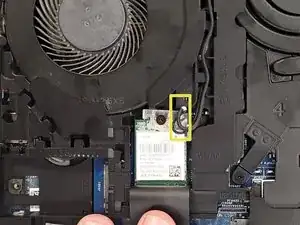

    • Use a spudger to detach the coaxial cables from the Wi-Fi card.

    • Be careful when detaching these cable connectors from the Wi-Fi card. The base of the connectors are prone to break off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
