Dell Alienware 18 Coin-Cell Battery Replacement

Geschrieben von: darrius
  • Kommentare: 0
Dell Alienware 18 Coin-Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Coin-Cell Battery.

  1. rjOIwpPYhYXfBlVX

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

  2. 1UYngLN5OSTt5mxR

    • Use a Phillips screwdriver to remove the three screws securing the base cover.

  3. inrv114W2iAnknUP

    • Slide the base cover towards the rear of the computer and lift it off the computer base.

  4. wiy6yL3FOYTRtPX3

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

    • WARNING: The battery may explode if installed incorrectly. Replace the battery only with the same or equivalent type. Discard used batteries according to the manufacturer’s instructions.

    • CAUTION: Removing the coin-cell battery resets the BIOS settings to default. It is recommended that you note the BIOS settings before removing the coin-cell battery.

    • Disconnect the coin-cell battery cable from its connector on the system board.

  5. UTUfp5pLDMd3tVxt

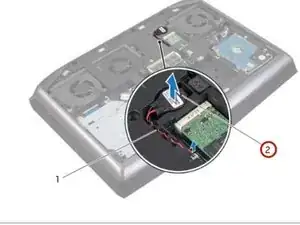

    • Remove the coin-cell battery cable from the routing guides on the computer base.

  6. QPJ2sxqJnWvmaJiG

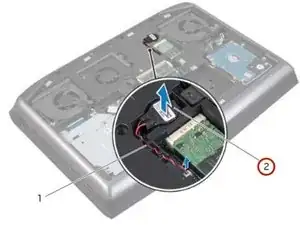

    • Pry up the coin-cell battery from the slot on the system board.

  7. MmuHDOTyP1EPQ25H

    • Place the NEW coin-cell battery into the slot and press gently to adhere it to the computer base.

  8. eRPqywQs4ERVFZUh

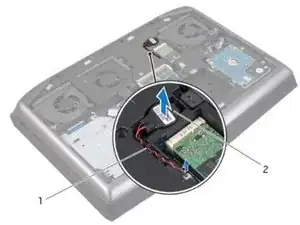

    • Route the coin-cell battery cable through the routing guides on the computer base.

  9. Ai2jMwZMpWYic3Vr

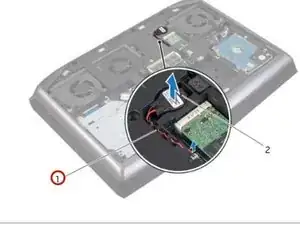

    • Connect the coin-cell battery cable to its connector on the system board.
