Dell Alienware 18 Hard Drive Replacement

Geschrieben von: darrius
  • Kommentare: 0
Dell Alienware 18 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. UIEEvBNiG4XaWMmA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in Sleep or On state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Disconnect the hard-drive cable from its connector on the system board.

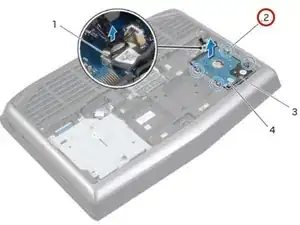

  2. 1MttpT6mQ2rNPulx

    • Loosen the captive screws that secure the hard-drive assembly to the computer base.

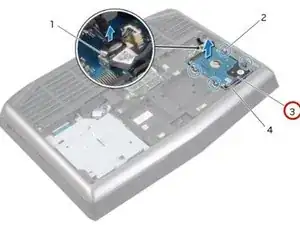

  3. jMCfOfERUTAI4Xxe

    • Using the pull-tab, lift the hard-drive assembly out of the computer base.

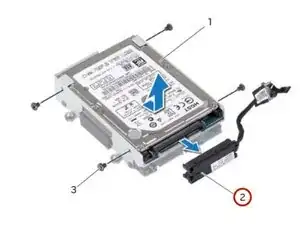

  4. KK3ymuclTCsgxoVj
    KK3ymuclTCsgxoVj

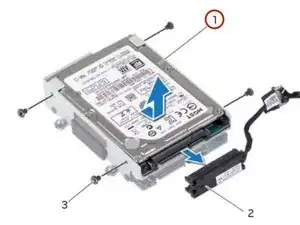

    QSabeIIWyvUsbU61

    • Disconnect the interposer from the hard drives.

    • NOTE: Your computer supports up to three drives.

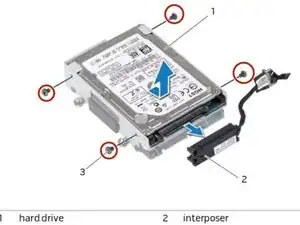

  5. aJRpR2q4SyqHCpk5

    • Remove the screws that secure the hard drive(s) to the hard-drive bracket and slide the hard drive(s) out of the hard-drive bracket.

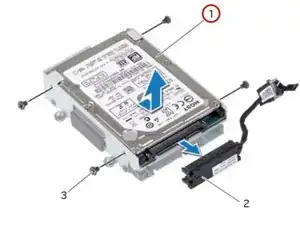

  6. YjSLnGmKmXNZKZqA

    • Place the NEW primary hard drive in the hard-drive bracket.

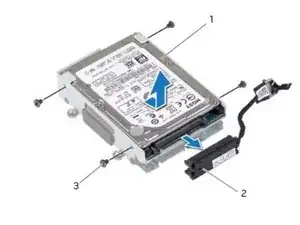

  7. CXA5fypDcCWiahLe

    • If applicable, slide the secondary hard drive into the hard-drive bracket.

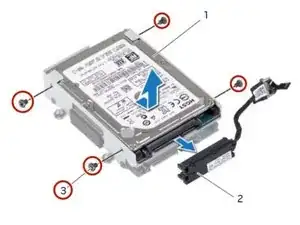

  8. aAXFd42SNFGpkEgY

    • Replace the screws that secure the primary hard drive to the hard-drive bracket.

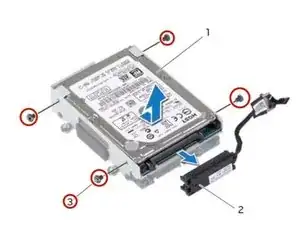

  9. EVAES4ucdfWn6Dvw

    • If applicable, replace the screws that secure the secondary hard drive to the hard-drive bracket.

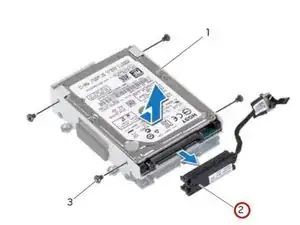

  10. JeIUOCntnF6b1YoG

    • Connect the interposer to the hard drives.

  11. rCdLNFEIwfoUKiqE

    • Place the hard-drive assembly in the computer base.

  12. IartsI3GNqNPiNpY

    • Tighten the captive screws that secure the hard-drive assembly to the computer base.

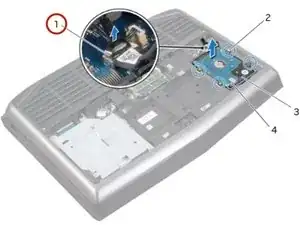

  13. MSqKXqKSsGko1AxV

    • Connect the hard-drive cable to its connector on the system board.
