Dell Alienware 18 Memory Module Replacement

Geschrieben von: darrius
  • Kommentare: 0
Dell Alienware 18 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

7 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. oNUruTq1PK2VtVc4

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

  2. dhS1oT5sLWeQ4fgL

    • To remove memory module(s) from connectors DIMM3 and DIMM4, go to step 3.

    • To remove memory module(s) from connectors DIMM1 and DIMM2: Remove the palm rest. See"Removing the Palm Rest" on page 39.

  3. dJUb5svllTdKfCPI

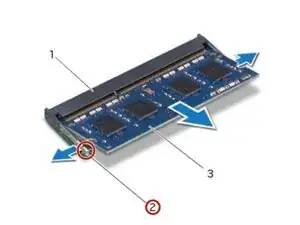

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.

    • Using your fingertips, spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  4. nS4dpPOIQLK43GQV

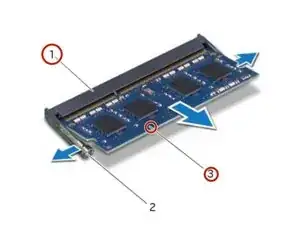

    • Remove the memory module from the memory-module connector.

  5. fBHafus5sKVokZxV

    • Align the notch on the NEW memory module with the tab on the memory-module connector.

  6. gCMQ5gOJFNXnjbOt

    • Slide the memory module firmly into the connector at a 45-degree angle and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.
