Dell Alienware M14x Hard-Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

8 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. LVx3sJxNIrObEGxy

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the battery-pack cable from the connector on the system board.

  2. VR5hiWIjZCsbAcKR

    • Loosen the two captive screws that secure the battery pack to the computer base.

  3. NGQk5bvNFiQHPIF2
    NGQk5bvNFiQHPIF2
    pNHNHwJ5SqwGJJGu

    • Using the pull-tab, lift the battery pack off the computer base.

  4. qTRQmJJO3NZ2bqQT

    • Place the NEW battery pack in the battery bay and tighten the two captive screws that secure the battery pack to the computer base.

  5. HYaEBDa1lstdru23

    • Connect the battery-pack cable to the connector on the system board.

  6. VQYRjQJ6RbQuN1LA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Loosen the three captive screws that secure the hard-drive assembly to the computer base.

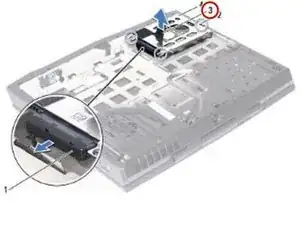

  7. XJNrEROpPASiBCB6
    XJNrEROpPASiBCB6
    RrFS1PxSEyHQbXUV
    JeYog5yYY1STHsQA

    • Using the pull-tab, gently lift the hard-drive assembly and then disconnect the hard-drive interposer.

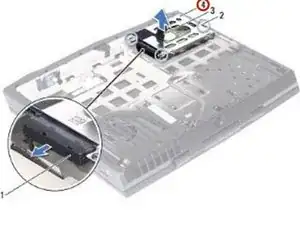

  8. XREHKESSqpBOJVVF

    • Lift the hard-drive assembly off the computer base.

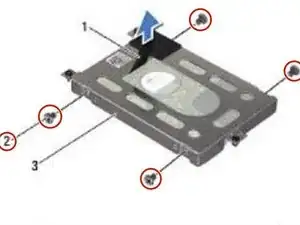

  9. HD3LP5TqVQxe5dxy

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

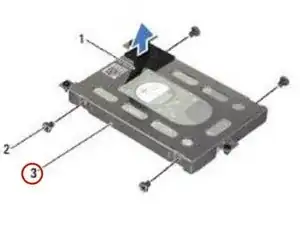

  10. r31Ejw2uhPTKa1hZ

    • Lift the hard-drive bracket away from the hard drive.

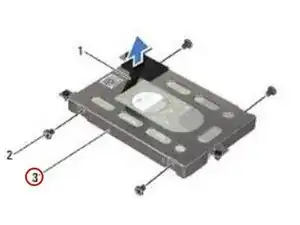

  11. u5kx3ABDLgDde6jS

    • Place the NEW hard drive in the hard-drive bracket.

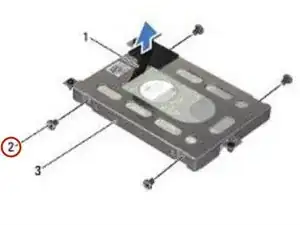

  12. dtKynYZikEVwo12i

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

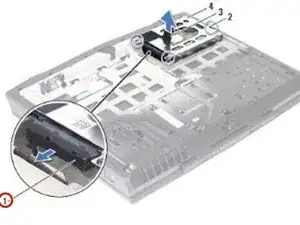

  13. HqIRJmiisGk5qG26

    • Connect the interposer to the hard drive.

  14. MaNZyQerIpHsCTGo

    • Place the hard-drive assembly in the computer base.

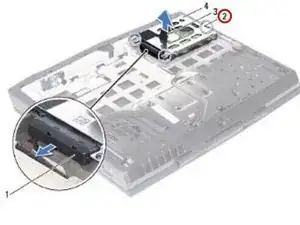

  15. E5Hj6HcoUtZHNRnx

    • Tighten the three captive screws that secure the hard-drive assembly to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
