Dell Alienware M17x Battery Pack Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery Pack.

  1. AkMYCQcZOiIKIeUc

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • WARNING: Before performing these procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer, disconnect the modem from the wall connector and the computer, and remove any other external cables from the computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer)

    • Turn the computer over.

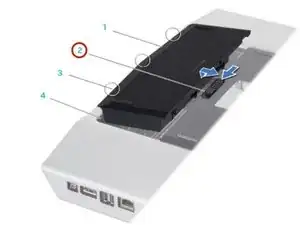

  2. QpTiAwlPgeMUfCLG

    • Slide the battery latch to the unlock position as shown.

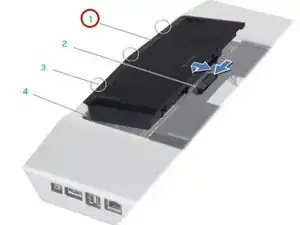

  3. 1sDVnOdLS3PtQmDO

    • The battery pack will pop up.

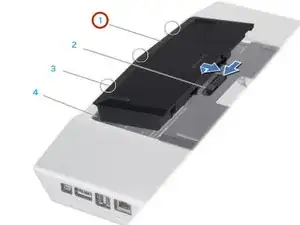

  4. 6qsvaenOAJnXOqVM

    • Remove the battery pack.

  5. BsHEI3h2aaH5Vuvv

    • Align the battery pack tabs with the slots in the battery bay.

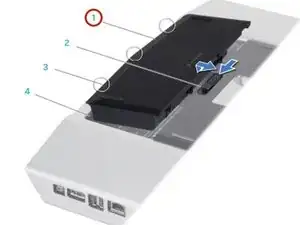

  6. 53ISGeJYgXIPXBnF
    53ISGeJYgXIPXBnF

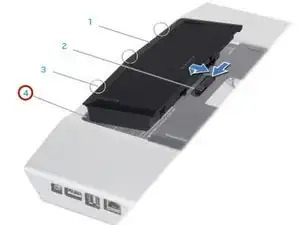

    ypR2RfULggDOMFLr

    • Slide the NEW battery pack into the battery bay until the battery pack clicks into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
