Dell Alienware M17x Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. VnUND6SJqmXxHDqV

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Loosen the four captive screws that secure the primary hard drive (HDD0)

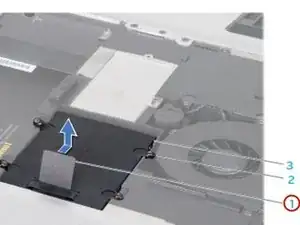

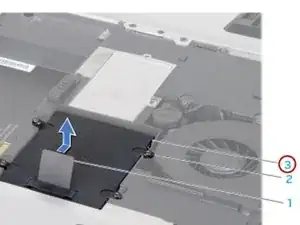

  2. OvY116paaCY3eOQK
    OvY116paaCY3eOQK
    mBnZEK1OpfG5SgIC

    • Using the pull tab, slide the primary hard drive (HDD0) towards the back of the hard drive bay and lift it out.

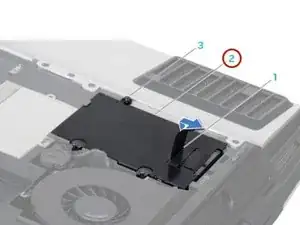

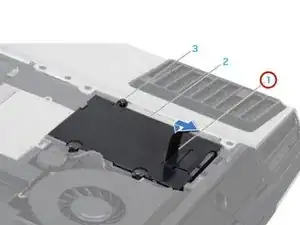

  3. mDSBpXyqPv4kZlcf
    mDSBpXyqPv4kZlcf
    wZ23a5niSAcDjvCV
    AcAvrLy2elyH4BIx

    • If your computer has a secondary hard drive (HDD1): 1. Loosen the four captive screws on the secondary hard drive (HDD1). 2. Using the pull tab, lift the secondary hard drive (HDD1) out of the hard drive bay.

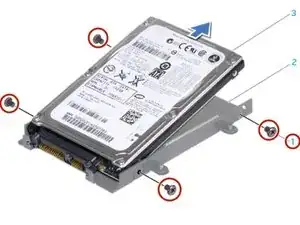

  4. rSrsTEyjJFUPTZ1R

    • Remove the four screws that secure the hard drive bracket to the hard drive.

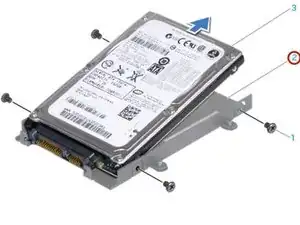

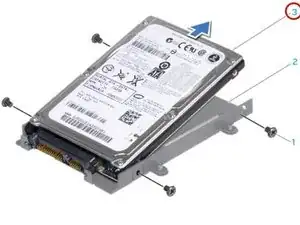

  5. DGDjnMNZyHALbOht
    DGDjnMNZyHALbOht
    m3ee1U4MYByMNihS

    • Slide the hard drive out of the hard drive bracket.

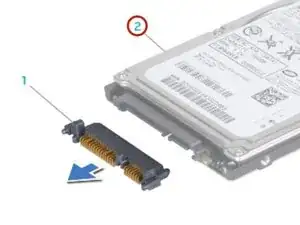

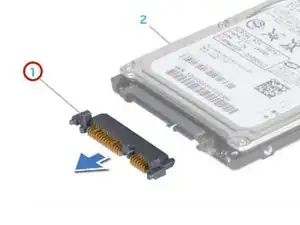

  6. JcvCSxJiMBE3XVXb
    JcvCSxJiMBE3XVXb
    LLITXlKgEbTUxbyU

    • Remove the interposer from the secondary hard drive (HDD1), if applicable.

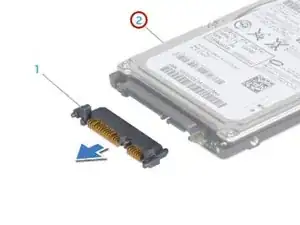

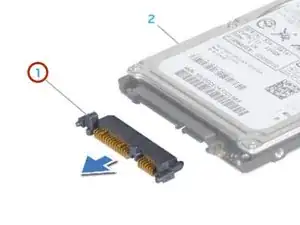

  7. tiL2BaXceNrCgXR2
    tiL2BaXceNrCgXR2
    YvKpYsenJupPJxUg

    • Connect the NEW interposer to the secondary hard drive (HDD1), if applicable.

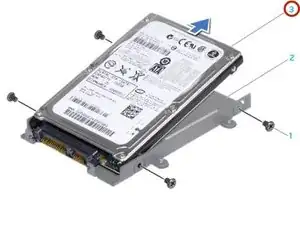

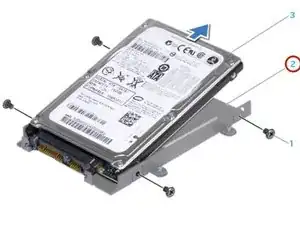

  8. jRwyXUdNeybSSkyp
    jRwyXUdNeybSSkyp
    xXbypTLvRd1YlWDL

    • Slide the hard drive into the hard drive bracket.

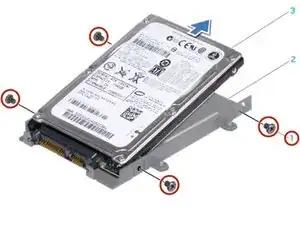

  9. ywQGQvUmWnaUkSLo

    • Replace the four screws that secure the hard drive bracket to the hard drive.

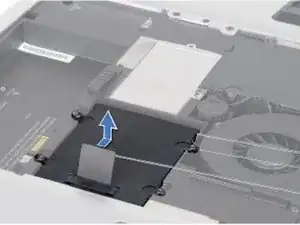

  10. UqenWEJ1UkKgv23D

    • Place the hard drive in the hard drive bay.

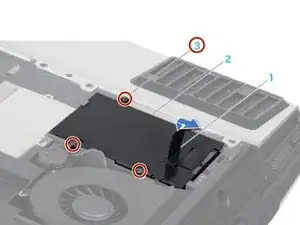

  11. MAhHhRBMgFAGmlvJ

    • If your computer has a secondary hard drive (HDD1), align and tighten the four captive screws that secure the hard drive to the hard drive bay.

    • Align and and tighten the four captive screws that secure the primary hard drive (HDD0) to the hard drive bay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
