Dell Alienware M17x Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. uwaxXwCQAENIUBBD

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • Loosen the captive screw and slide the memory module door out of the computer base.

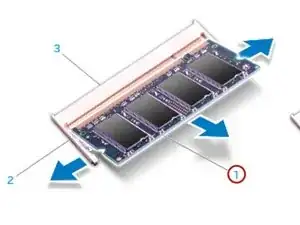

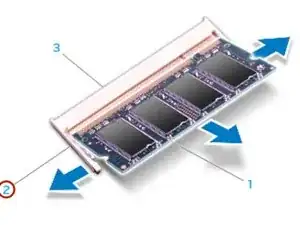

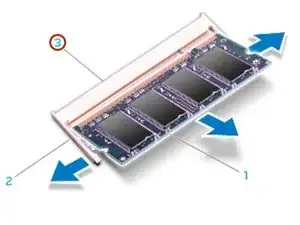

  2. tE4ol5wQfDmMoXiA
    tE4ol5wQfDmMoXiA
    tdSeBKu2WSpfJchd
    kIiWRQjKK1HFhTdg

    • CAUTION: If you need to remove memory modules from both connectors, remove the memory module in the upper connector before you remove the module in the lower connector.

    • Use your fingertips to carefully spread apart the spring-locks on the memory module connector until the module pops up.

  3. uAxDUGi2GVAUq2Q1

    • Remove the memory module.

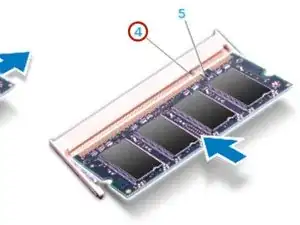

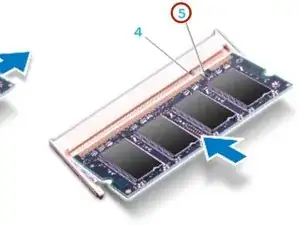

  4. oJAjURHoySreMFO6
    oJAjURHoySreMFO6
    YnkdAlZgJXvYMYeB

    • CAUTION: If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a module in the upper connector.

    • Align the notch on the NEW memory module with the tab on the memory module connector.

  5. fRtsANRCktyHwTOW
    fRtsANRCktyHwTOW
    tJHn2DZSbu5jQs2Z

    • Insert the module into the memory module connector at a 45-degree angle, and press the module down until it clicks into place. If you do not hear the click, remove the module and reinstall it.

    • CAUTION: If the memory module door is difficult to close, remove the memory module and reinstall it. Forcing the memory module door to close may damage your computer.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
