Dell Alienware M17x R2 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. swpv1GnItjdnG5Bl

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Loosen the four captive screws that secure the primary hard drive (HDD0).

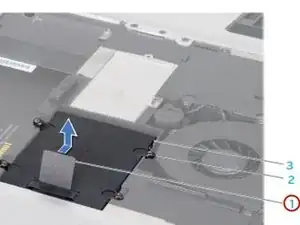

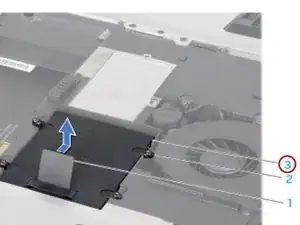

  2. SbEpSIRhDijNjRDy
    SbEpSIRhDijNjRDy
    fyLTkUY5kqRF2Zx2

    • Using the pull tab, slide the primary hard drive (HDD0) towards the back of the hard drive bay and lift it out.

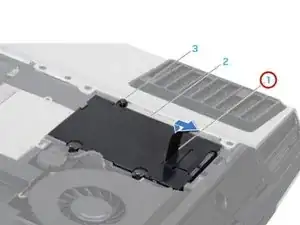

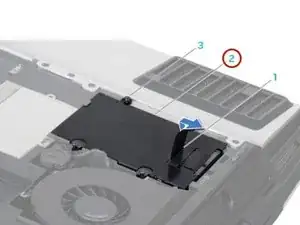

  3. 41FYrnavOxSp61Al
    41FYrnavOxSp61Al
    LlHKcNlTrhJUYAi1
    Ny6mGQsbYh6UFCoF

    • If your computer has a secondary hard drive (HDD1): 1. Loosen the four captive screws on the secondary hard drive (HDD1). 2. Using the pull tab, lift the secondary hard drive (HDD1) out of the hard drive bay.

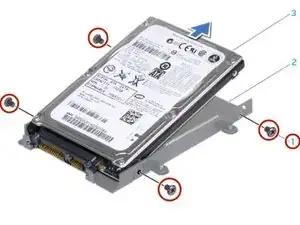

  4. YHGSrDKOkwrT2bGT

    • Remove the four screws that secure the hard drive bracket to the hard drive.

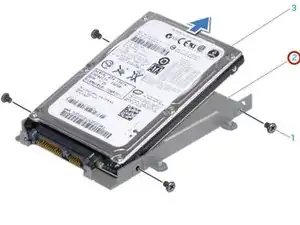

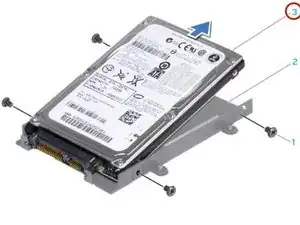

  5. K6SXoktgMw3ImoJ4
    K6SXoktgMw3ImoJ4
    DDCRipRpkhqP3qld

    • Slide the hard drive out of the hard drive bracket.

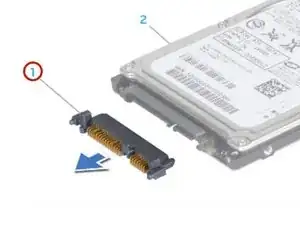

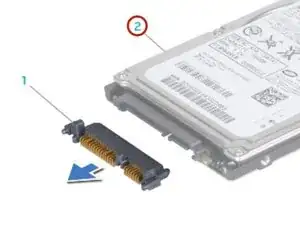

  6. JW2PRAhXEgTWOlY4
    JW2PRAhXEgTWOlY4
    XIHBRdAHQEOocSos

    • Remove the interposer from the secondary hard drive (HDD1), if applicable.

  7. KPbBbCsJm6T5wKMc
    KPbBbCsJm6T5wKMc
    I6ayN2mFRVWPQipO

    • Connect the NEW interposer to the secondary hard drive (HDD1), if applicable.

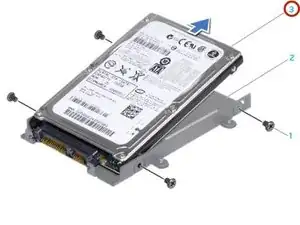

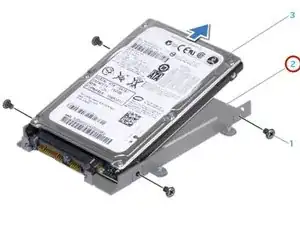

  8. ADUoDEIxcLc3aLEI
    ADUoDEIxcLc3aLEI
    pAXobPG5mVZgdTGT

    • Slide the hard drive into the hard drive bracket.

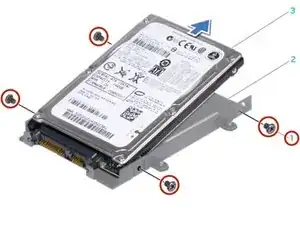

  9. 3Du5JTMvoCIXUrwB

    • Replace the four screws that secure the hard drive bracket to the hard drive.

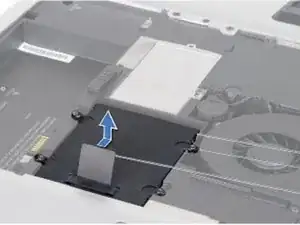

  10. BxS4QohPWoA4kXGr

    • Place the hard drive in the hard drive bay.

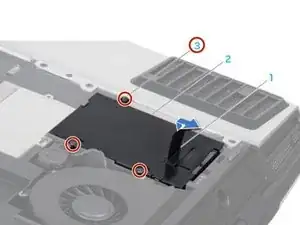

  11. QqbQQDgYU61TdY3J

    • If your computer has a secondary hard drive (HDD1), align and tighten the four captive screws that secure the hard drive to the hard drive bay.

    • Align and and tighten the four captive screws that secure the primary hard drive (HDD0) to the hard drive bay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
