Dell Alienware M17x R2 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware M17x R2 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. Wb1MLICNCmyN1VoC

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • Loosen the captive screw that secures the memory-module door to the computer base.

  2. qPTMKggZfF1IBnNo

    • Slide the memory-module door to release the tabs and lift the memory- module door out of the computer base.

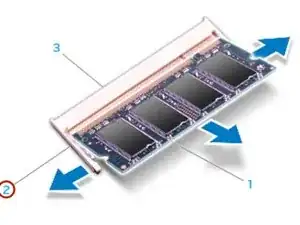

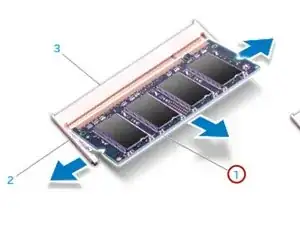

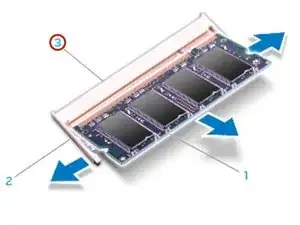

  3. tI2gILlcZBLt1ZcC
    tI2gILlcZBLt1ZcC
    R6RlNnuWXHXhNWPa
    GLVSvel15XrSCZmA

    • CAUTION: If you need to remove memory modules from both connectors, remove the memory module in the upper connector before you remove the module in the lower connector.

    • Use your fingertips to carefully spread apart the spring-locks on the memory module connector until the module pops up.

  4. AIyBZRijKeTghuAZ

    • Remove the memory module.

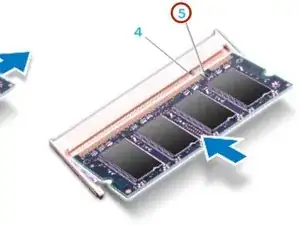

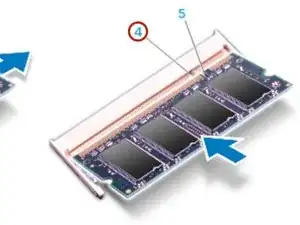

  5. BrD6oMR5Ej1UQ5YC
    BrD6oMR5Ej1UQ5YC
    Kxh66WiiM61mcYso

    • CAUTION: If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a module in the upper connector

    • Align the notch on the NEW memory module with the tab on the memory module connector.

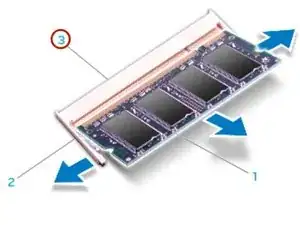

  6. qef6u1WNrMwZ4nMZ
    qef6u1WNrMwZ4nMZ
    DQ2jIAxtTlcIVAPI

    • Insert the module into the memory module connector at a 45-degree angle, and press the module down until it clicks into place. If you do not hear the click, remove the module and reinstall it.

    • CAUTION: If the memory module door is difficult to close, remove the memory module and reinstall it. Forcing the memory module door to close may damage your computer.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
