Dell Alienware M17x R3 Battery Pack Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware M17x R3 Battery Pack Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery Pack.

  1. wnAOvVOPXy1CCHVe

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To avoid damage to the computer, use only the battery designed for this particular Alienware computer. Do not use batteries designed for other Alienware computers.

    • Shut down the computer and turn it over.

  2. xp1WmUJyZIyjaRuI
    xp1WmUJyZIyjaRuI
    P1UDSO2owfQRPlDb

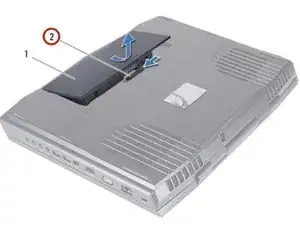

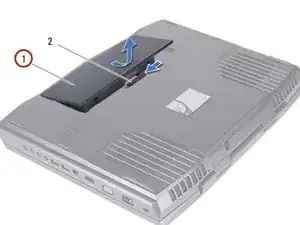

    • Slide the battery latch to the unlock position as shown. The battery pack pops up.

  3. kXO6DgUIRXyAFke6

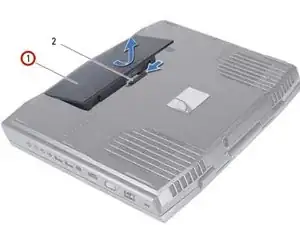

    • Remove the battery pack.

  4. dlST6wbFbbsaLBZp

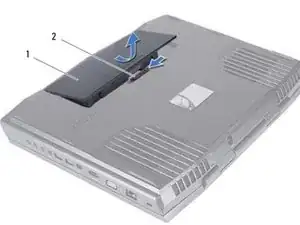

    • Align the tabs on the NEW battery with the slots on the battery bay and snap the battery into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
