Dell Alienware M17x R3 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware M17x R3 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

9 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. CcoBNe4dkFjFTMKh
    CcoBNe4dkFjFTMKh

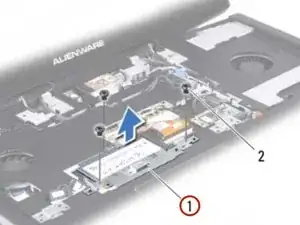

    qcOQmDnFy5RPvKrE

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.

    • Remove the three screws that secure the memory-module cover to the palm rest assembly.

  2. SxBfApOGbFlGrstt

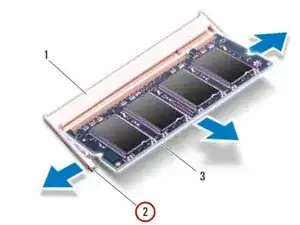

    SxBfApOGbFlGrstt

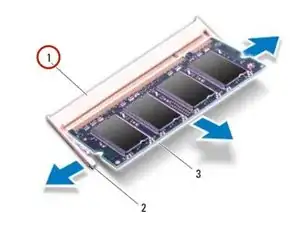

    2EGARyBditgdlQuR

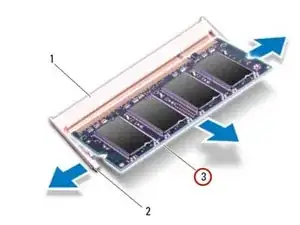

    SLmFmktSIYYRE3MV

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector un til the memory module pops up.

  3. BKuWIMgpMAraRqXM
    BKuWIMgpMAraRqXM

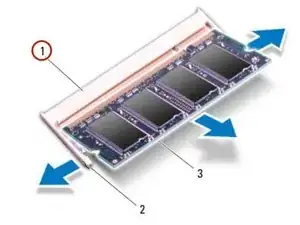

    ZrZjStkXJC3RWqdl

    • Remove the memory module from the memory-module connector.

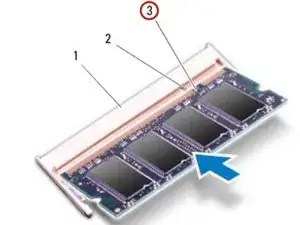

  4. iIOpVNsCbDMLXvtp

    • If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a memory module in the upper connector.

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

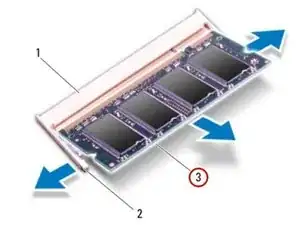

  5. MEsAFLylNbW2TC5B

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
