Dell Alienware M17x R4 Battery Pack Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Alienware M17x R4 Battery Pack Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

2 - 6 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery Pack.

  1. o6feyhGkOR4O45QS

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

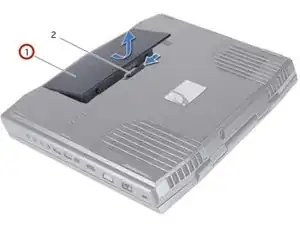

    • Slide the battery latch to the unlock position as shown. The battery pack pops up.

  2. u5WafJd2M1uYqVHm

    • Remove the battery pack.

  3. WHbgIHHtLrNIX2lZ

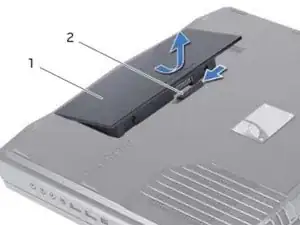

    • Align the tabs on the NEW battery with the slots on the battery bay and snap the battery into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
