Dell Axim X30 Button Replacement

Geschrieben von: Jonathan Gulley
  • Kommentare: 0
Dell Axim X30 Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

25 Minuten

Einleitung

The Dell Axim X30 has 5 buttons on the front of the device below the main screen. This guide will focus on the replacement of the home button, messaging button, navigator button, contacts button, and calendar button.

  1. D5qDRDQGIOHigvVE
    D5qDRDQGIOHigvVE
    Sfnkjyaa4kOCo1xl

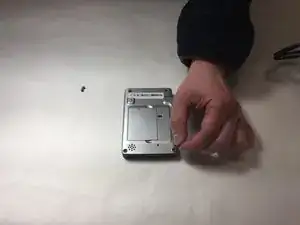

    • Remove the four rubber feet with your fingers.

  2. xZvJfDDsOeGxl1c2
    xZvJfDDsOeGxl1c2
    FiUW2u2kPOGPqLRS

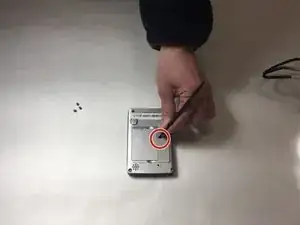

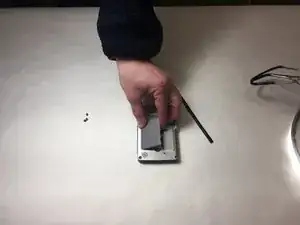

    • Insert the nylon spudger into the battery cover release slot to remove the battery from the device.

  3. Q2IMOXBOTxer4tOd

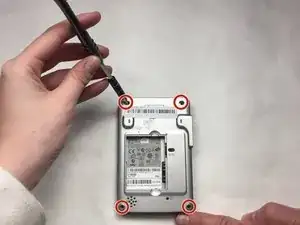

    • Remove four 12.7mm JIS #0 screws.

  4. O55JVMmU2qhnm4ku

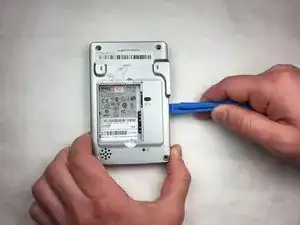

    • Remove the back panel with a plastic opening tool. Follow the edge of the device around the entire perimeter.

    • The back panel will pop off easily.

  5. BmmZKYxZmqTEbGHX
    BmmZKYxZmqTEbGHX
    cFZnLcfFhqgEosF5
    uTPyQsFOBpOLoqD2

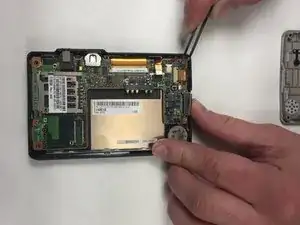

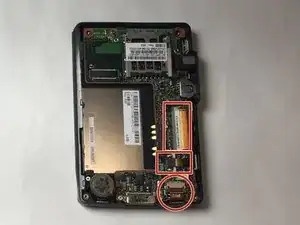

    • Disconnect ribbon cables.

    • You may need to use a little force to disconnect them.

    • Disconnect red and white wired connector for speaker and motherboard battery.

  6. tOAYKRLCjGVlyQiW
    tOAYKRLCjGVlyQiW
    bPYBNBlFrMTluYc5

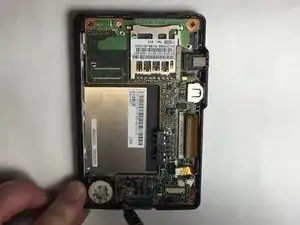

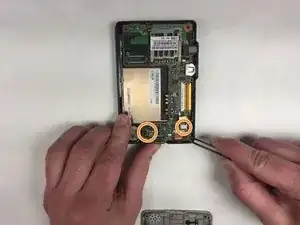

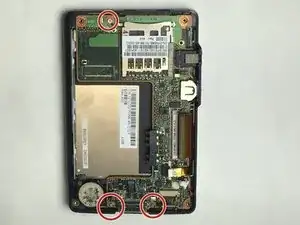

    • Remove three 12.7mm JIS #0 screws.

  7. 2yg2nWQwYxEoTjYr

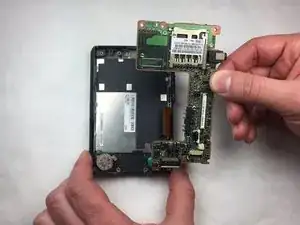

    • Carefully remove motherboard.

  8. 5pIJHYrwKdWRjcJO

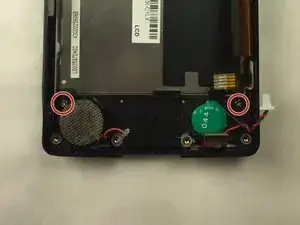

    • Remove the two 9.6 mm screws by the speaker and green battery with a JIS #0 screwdriver.

  9. pkm53FjpuvfMJHam
    pkm53FjpuvfMJHam
    TjJnh4KlsBHCJwXL

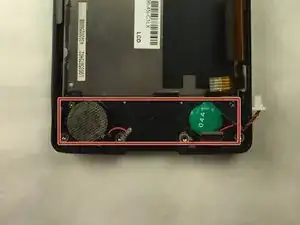

    • Remove black plastic board.

  10. i1dKJrSu46DauDYd
    i1dKJrSu46DauDYd
    SBPZPZPdO2wLHF1X

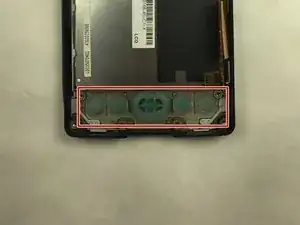

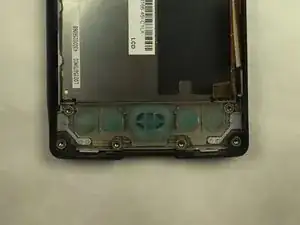

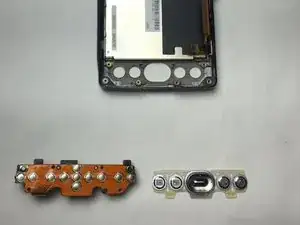

    • Remove grey and green membrane buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
