Dell Chromebook 11 3180 Motherboard Replacement

Geschrieben von: George Erie
  • Kommentare: 6
Dell Chromebook 11 3180 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

20 Minuten

Einleitung

This guide will instruct you on how to remove the motherboard of your laptop. This is a rather involved process and may require some significant time to accomplish. The motherboard is located below the battery and is connected to nearly everything so take care that it is completed disconnected by following this step by step guide.

  1. kK2ZURg2UJNDnSxP

    • Set your laptop upside down on your work space.

    I usually skip most all of this and start with the bezel, disconnecting the screen wire AT THE SCREEN, and not at the motherboard. 4 screws around the bezel, and 4 screws in the screen. Leave everything connected and skip to step 12.

    Denton Holland -

  2. SroJvXMZOGPYBNm3

    • Using tweezers, remove the circular stickers that are covering the two screws near the middle of the back cover. Stick them to the laptop next to the screws.

    -coordinate color of bullet points with markup

    -perhaps say "...in the middle of the back cover" instead of "at"

    Daniel Leon-Gijon -

  3. F5gT6g6IIH5hyGTA

    • Using a Phillips #0 screwdriver, loosen all seven 2.5mm screws on the back cover of the device.

    • These screws will stay attached to the back cover, so just loosen them until they rattle around.

    -coordinate color of bullets with markup

    Daniel Leon-Gijon -

  4. SFwKeE14cNHYLkYE

    • Using a plastic opening tool, begin to separate the back cover from the body of the computer.

    • If you have trouble prying a particular part of the back cover off, make sure that the nearest screws are fully loosened.

  5. GytiuSLFBHZClcbZ

    • Using your hands, pull the back cover fully off of the body of the computer.

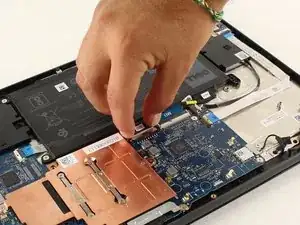

  6. Y6crYUCLDf1kvSH3
    Y6crYUCLDf1kvSH3
    TjX6MBym5ka1KRtC

    • Unplug the battery from the motherboard by gently pulling the black cable header from the motherboard towards the battery.

    • You can locate this cable by checking that its other end connects to the battery. It has black protective wrap.

    -coordinate color of bullet with markup

    Daniel Leon-Gijon -

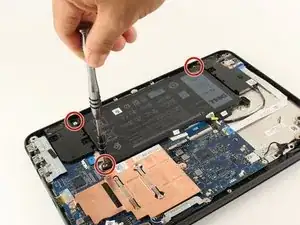

  7. RYuccZKNNcehUGji

    • Using a Phillips #0 screwdriver, remove each of the three 3mm screws from the battery.

    -coordinate color of markup with bullet

    Daniel Leon-Gijon -

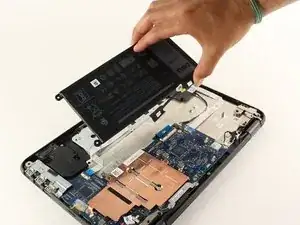

  8. FlhMUgvKM1DZjgfJ

    • Lift the battery away from the computer to remove it.

    • If there is any resistance to the battery being removed, make sure that all of the screws have been properly removed and that nothing is blocking the battery.

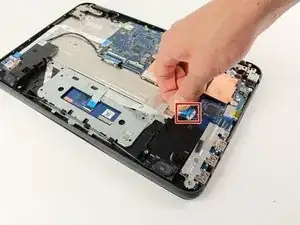

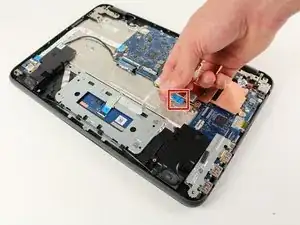

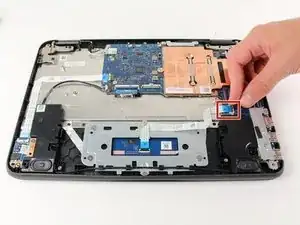

  9. ZHPdCGpRHVJ5I2PM
    ZHPdCGpRHVJ5I2PM
    G4BCOR1ppYpT6Pom
    fqXZYv2OimqLIFC5

    • Lift the black clasp and gently pull on blue ribbon until it completely disconnects from the motherboard.

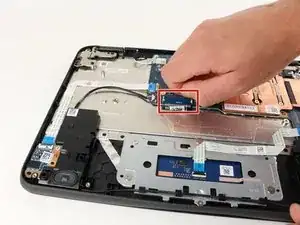

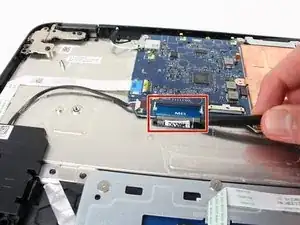

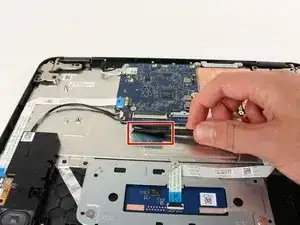

  10. nPFbcmGPIFADtOPg
    nPFbcmGPIFADtOPg
    GKgnIS2mBNCoSs4x
    F1jqko6pbnpwbuyX

    • Lift the black clasp and use the spudger tool to remove the ribbon so that it completely disconnects from the motherboard.

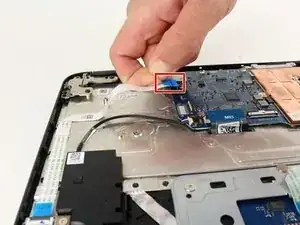

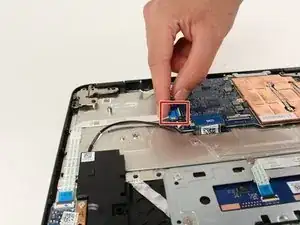

  11. lGVZYwnXvEKGMfcD
    lGVZYwnXvEKGMfcD
    EAklHOyOQWPxdCIB

    • Lift the black clasp and gently pull on blue ribbon until it completely disconnects from the motherboard.

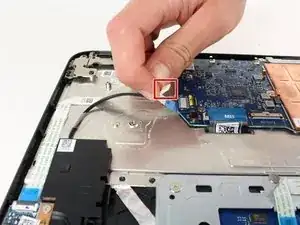

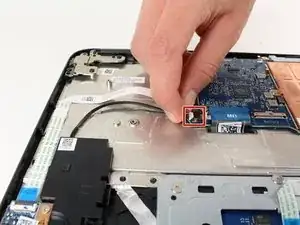

  12. HHR5KhegkPTcCHpn
    HHR5KhegkPTcCHpn
    voOU2xckIUKcINEe

    • Locate and gently pull the wire harness (small plastic box with wires leading to the black audio speakers) directly out of the connector on the motherboard.

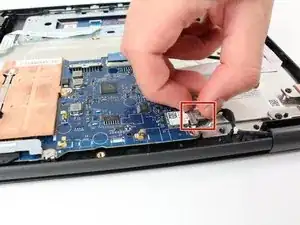

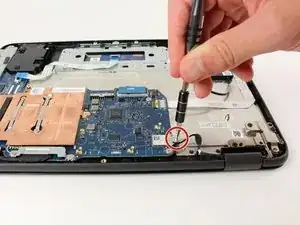

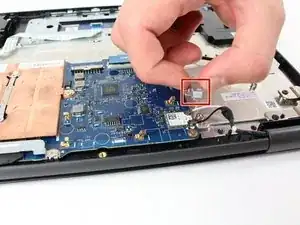

  13. Pm5IryyNZ4vLsL1C
    Pm5IryyNZ4vLsL1C
    ROlLgOadAZNgOFHc
    EUkoxGRukqqyOBlX

    • Using a Phillips #0 screwdriver, remove the single 3mm screw.

    • Remove the metal shield protecting the black and white wires beneath it.

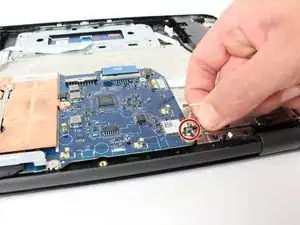

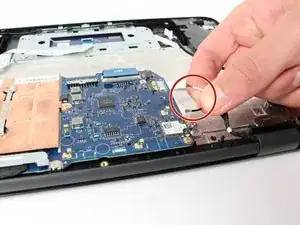

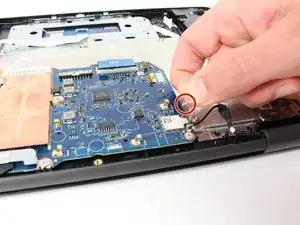

  14. 3bWMGR1E5Djr5mFv
    3bWMGR1E5Djr5mFv
    KmKK2fBK3KESaSoM
    rKAKGqfiCPRDH6BN

    • Locate and gently pull up on the white and black wires to disconnect them from the motherboard.

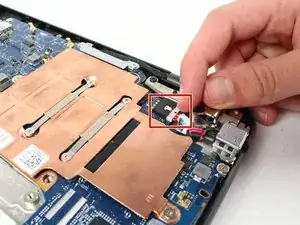

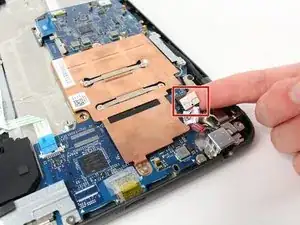

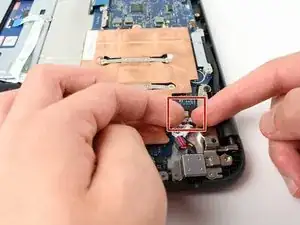

  15. e6ZG5fq21hNZZKLX
    e6ZG5fq21hNZZKLX
    krSNvBbHB2IlElUE
    rWrMfVxYWAAjkCCe

    • Locate and gently pull the wire harness (small plastic box with two pink, one orange, and two black wires) directly out of the connector on the motherboard.

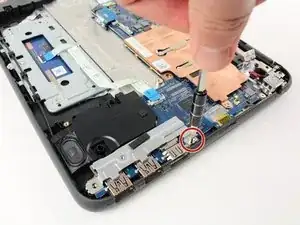

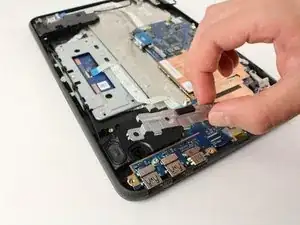

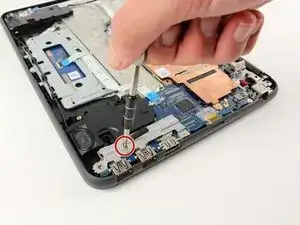

  16. OrKX3aGPAJQOonef
    OrKX3aGPAJQOonef
    LOqfVW2KYCOKjoAW
    NUwJTYCB6TudChGl

    • Using a Phillips #0 screwdriver, remove the two 3mm screws.

    • Remove the metal shield protecting the black and white wires beneath it.

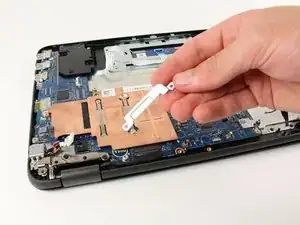

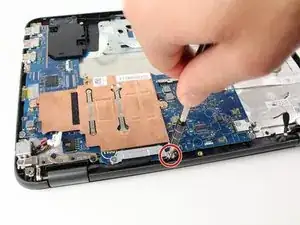

  17. ntkUFWFSJiNlCBum
    ntkUFWFSJiNlCBum
    lG1nwRmMAoCHE4BT
    Z4aAJ56YQXdqqDej

    • Using a Phillips #0 screwdriver, remove the two 3mm screws.

    • Remove the metal shield protecting the black and white wires beneath it.

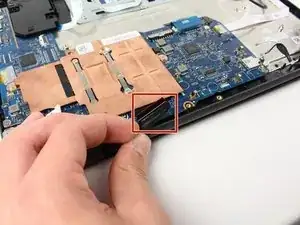

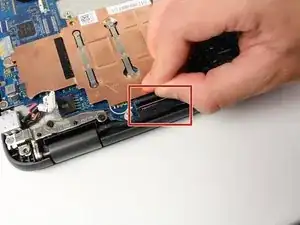

  18. HFn1jeUZlO2vRJyx
    HFn1jeUZlO2vRJyx
    BRnyyMCRZZkCmKgv
    QV1xBhwRf43AsxSw

    • Lift black clasp and gently pull on the back of the wire until it completely disconnects from the motherboard.

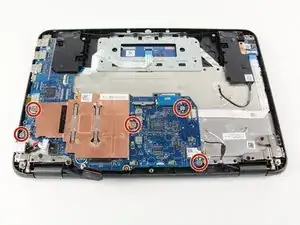

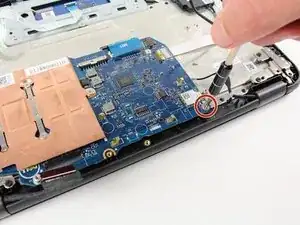

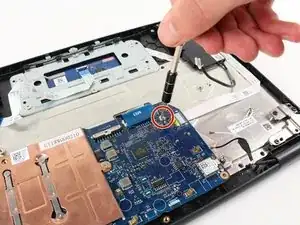

  19. 1QktrYZuMOobP4QQ
    1QktrYZuMOobP4QQ
    3uDmOUAw1MHIgDaS
    HgMmeNNUqDTj3kuP

    • Using a Phillips #0 screwdriver, remove the five 3mm screws.

  20. OrAFRgc44dch5FbN
    OrAFRgc44dch5FbN
    peQHDCUgObBfoDxX

    • Gently lift and remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
