Einleitung
This guide shows how to replace the actual screen of your Chromebook. If you have an entire new display assembly (plastic case and such that make up the top of the laptop), you can adapt this guide and just remove the old display and replace it with the new one.
Ersatzteile
-
-
Using tweezers, remove the circular stickers that are covering the two screws near the middle of the back cover. Stick them to the laptop next to the screws.
-
-
-
Using a Phillips #0 screwdriver, loosen all seven 2.5mm screws on the back cover of the device.
-
-
-
Using a plastic opening tool, begin to separate the back cover from the body of the computer.
-
-
-

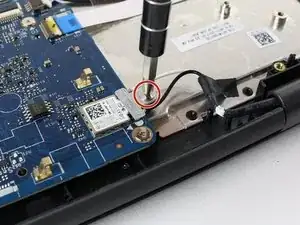

Using a Phillips #0 screwdriver, remove the single 3mm Phillips head screw holding down the small metal bracket that covers where the small black and white wires connect to the motherboard.
-

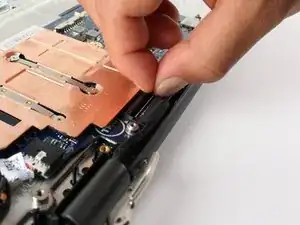

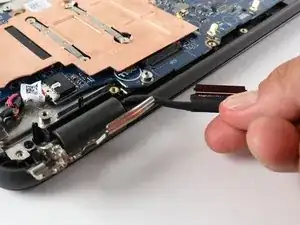

Once this screw has been removed. Unplug these two wires by gently puling them up and away from the motherboard. Hold the wire as close to the end as possible.
-
-
-

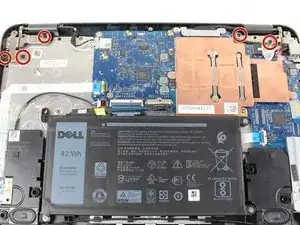

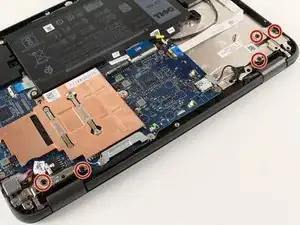

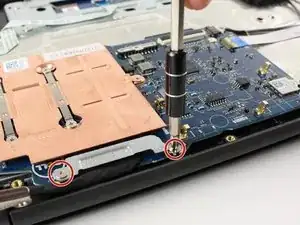

Using a Phillips #0 screwdriver, remove the two 3mm Phillips head screws from the metal bracket that covers where the wrapped cable from the screen attaches to the motherboard.
-
-
-
Remove the screen connector cable. To do this, gently lift up on the black tab where the cable plugs into the motherboard.
-
Once you have lifted the tab, gently pull the cable horizontally away from the motherboard connector to unplug it.
-
-
-

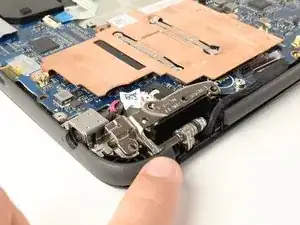

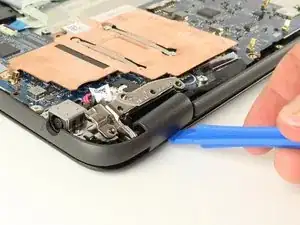

Using a plastic opening tool, remove the plastic hinge covers by inserting the tool into the gap and prying away from the computer.
-

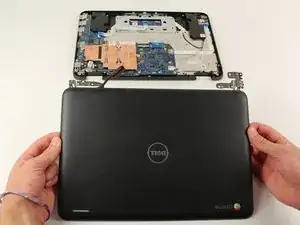

You should now be able to separate the screen assembly from the rest of the laptop.
-
-
-
Once it's separated from the rest of the computer, place the screen assembly face up on your work space.
-
Using tweezers, remove all four stickers covering screws on the front. Stick these to the computer, a few inches from the screw holes.
-

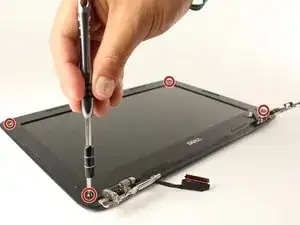

Using a Phillips #0 screwdriver, remove all four 3.5mm Phillips head screws from the front of the display assembly.
-
-
-

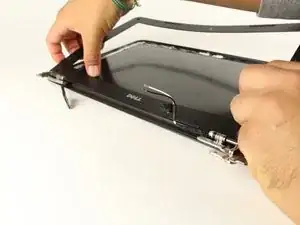

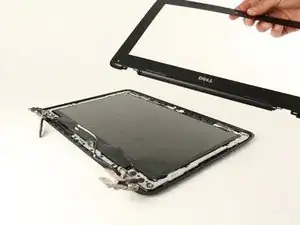

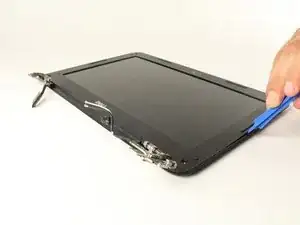

Using a plastic opening tool to start, and then eventually your hands, pry the front most face of plastic off of the screen assembly.
-
-
-

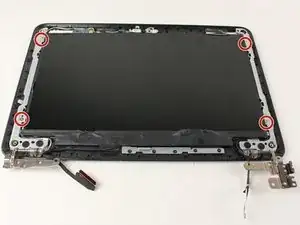

Using a Phillips #0 screwdriver, remove all four silver 3mm Phillips head screws that hold the screen tabs to the bracket.
-
-
-

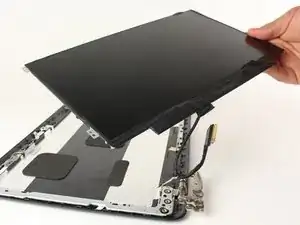

Lift the screen itself away from the rest of the assembly. Place it face down next to the rest of the assembly.
-
-
-

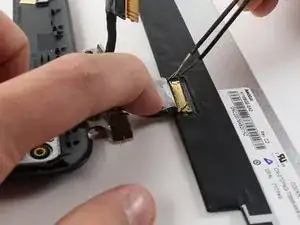

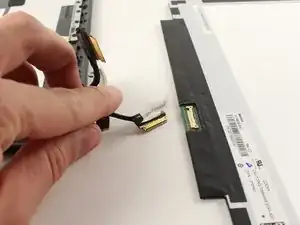

To unplug the screen, use tweezers to lift the small metal wire on the connector, and then gently pull the cable away from the screen.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
You don’t have to disconnect the display from the main body. Just be careful cause the plastic lcd bezel has strong adhesive and it is easy to crack the plastic bezel when separating it from the LCD panel.
I usually skip most all of this and start with the bezel, disconnecting the screen wire AT THE SCREEN, and not at the motherboard. 4 screws around the bezel, and 4 screws in the screen. Leave everything connected and skip to step 12.
