Dell Chromebook 11 3180 Speakers Replacement

Geschrieben von: George Erie

Kommentare: 3

Dell Chromebook 11 3180 Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the speakers of your Chromebook. This is a very straightforward and easy repair.

Werkzeuge

Ersatzteile

Dell Chromebook 11 3180 Speaker Set

Schritt 1

Set your laptop upside down on your work space.

I usually skip most all of this and start with the bezel, disconnecting the screen wire AT THE SCREEN, and not at the motherboard. 4 screws around the bezel, and 4 screws in the screen. Leave everything connected and skip to step 12.

Denton Holland -

Schritt 2

Using tweezers, remove the circular stickers that are covering the two screws near the middle of the back cover. Stick them to the laptop next to the screws.

-coordinate color of bullet points with markup

-perhaps say "...in the middle of the back cover" instead of "at"

Daniel Leon-Gijon - 17/05/17

Schritt 3

Using a Phillips #0 screwdriver, loosen all seven 2.5mm screws on the back cover of the device.
These screws will stay attached to the back cover, so just loosen them until they rattle around.

-coordinate color of bullets with markup

Daniel Leon-Gijon - 17/05/17

Schritt 4

Using a plastic opening tool, begin to separate the back cover from the body of the computer.
If you have trouble prying a particular part of the back cover off, make sure that the nearest screws are fully loosened.

Schritt 5

Using your hands, pull the back cover fully off of the body of the computer.

Schritt 6

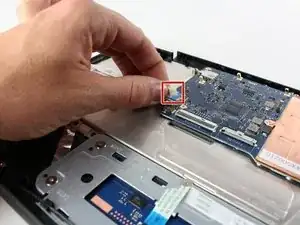

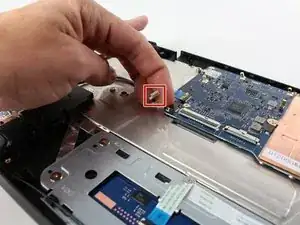

Locate and gently pull the wire harness (small plastic box with wires leading to black audio speakers) directly out of the connector on the motherboard.
Some components are not shown in pictures for simplicity. There is no need to remove any of the missing components to successfully remove the speakers.
