Dell Chromebook 11 3189 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Chromebook 11 3189 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. JGlfS3Ovdrvn4YOF

  2. HNYGZc2de2jYlyPW

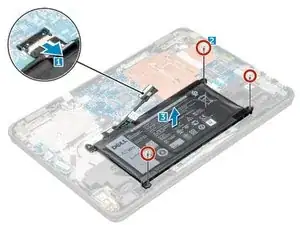

    • Remove the M2.0x3.0 screws that secure the battery to the computer.

  3. MSynGMFIpO1CirPY

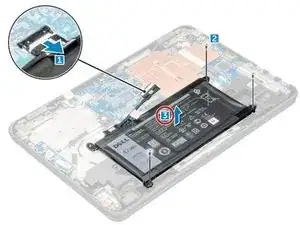

    • Lift the battery away from the computer.

  4. uJKIcD42CAcW333f

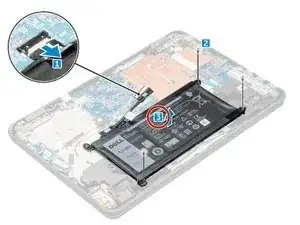

    • Insert the NEW battery into the slot on the computer.

  5. cYwcZdcAFqA1U6Uy

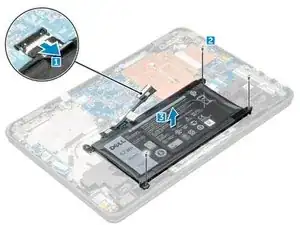

    • Connect the battery cable to the connector on the battery.

  6. QyqbQFfbJEGZOnyQ

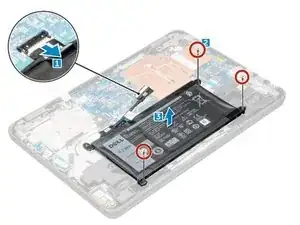

    • Replace the M2.0x3.0 screws to secure the battery to the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
