Dell Chromebook 11 3189 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 1
Dell Chromebook 11 3189 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. R3o45SOnXXl2VmvB

    • Lift the display assembly away from the computer.

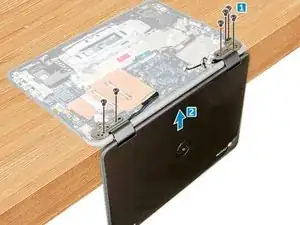

  3. wRbTpVHAt3dgJdkQ

    • Place the display assembly to align with the screw holders on the computer.

  4. ABlKuHDEVgoSYGsS

    • Replace the screws that secure the display hinges to the palm-rest assembly.

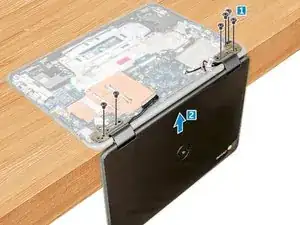

  5. i3VkCncU6SvSfTnX

    • Flip over the computer and connect the sensor cable on the system board.

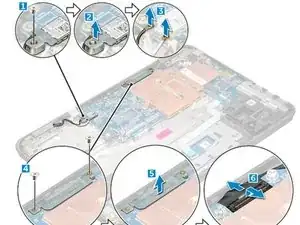

  6. eHTFm6IY6DmaaGeW

    • Connect the display cable to the connector on the system board.

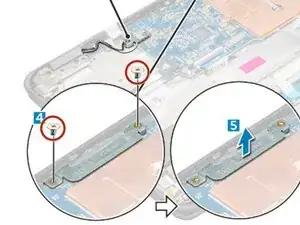

  7. YWZolHUmVAQC1Cuc

    • Place the metal bracket over the (display cable) connector, and tighten the M2.0x3.0 screws to secure the display cable to the computer.

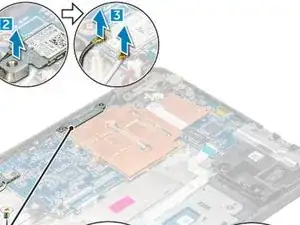

  8. BieNAUHjRZj4rp3X

    • Connect the WLAN cables.

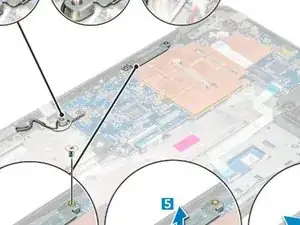

  9. PNQoJIPOs5YPEFlS

    • Place the metal bracket, and tighten the M2.0x3.0 screw to the WLAN cable on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
