Dell Chromebook 11 CB1C13 Battery Replacement

Geschrieben von: Jerry Geffrard
  • Kommentare: 1
Dell Chromebook 11 CB1C13 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will display how to replace the battery. A recall was issued on the batteries that came with the Dell Chromebook 11, so it is very important to know how to replace them. A faulty battery may not only be unable to hold a charge, but could also cause severe damage to the device.

  1. OHIUKVGStVQYMFSV
    OHIUKVGStVQYMFSV
    ENuv42xbQfXQHinq
    HUF4WIXVJaIW1CiS

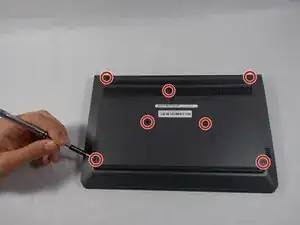

    • Make sure that device is fully powered down before attempting to open the back case.

    • Remove all seven 8mm Philips #0 screws from the back case with a Philips #0 screwdriver.

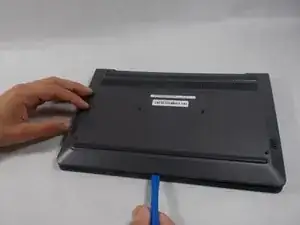

    • Once all seven screws are removed, you can pry the case off using your fingers or a plastic opening tool.

  2. gZMdjWQV3j5mUjgW
    gZMdjWQV3j5mUjgW
    lVCTD4rMbPFGTGBM

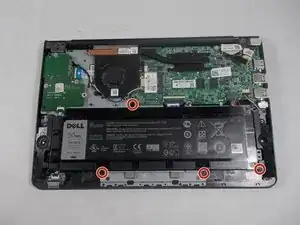

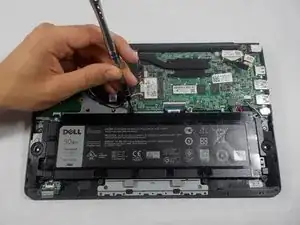

    • Use a Phillips #0 screwdriver to unscrew the four 8 mm screws that secure the battery.

    There is one more screw in the top right corner that you missed.

    Jason Zeng -

  3. qfIcW1WoZkZLkoAu
    qfIcW1WoZkZLkoAu
    ACijBC1AfKdXNNMq

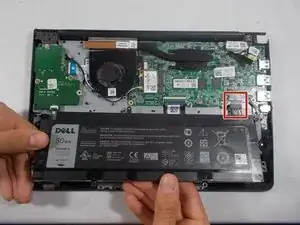

    • Use a plastic spudger to push the bundled cable connector free in the same direction as the individual wires are running.

    • You can use your fingers to help pull the cable free. Pull evenly on the full width of the cable so that no individual wires are overly strained.

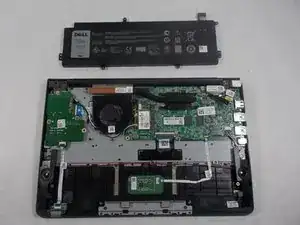

    • Proceed to gently remove the battery from the back panel.

Abschluss

To replace your Dell Chromebook 11 battery, follow these instructions in order.
